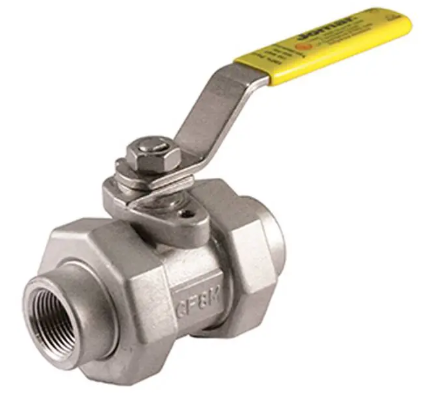

2" Jomar Valve T-SS-2002N-DUE, 5 Piece, Double Union End, Full Port, Stainless Steel, NPT Threaded, Stainless Steel Ball & Stem, 3000 WOG Ball Valve
Brand : Jomar Valve
MSRP: $840.89
Starting At:
$600.99
(You save
$239.90
)
- SKU:
- 100-988
- Size:
- 2"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
2" Jomar Valve T-SS-2002N-DUE 5 Piece Ball Valve Technical Specs
Features
- Solid Ball Construction
- Mounting Pad
- Reversible Handle
- Locking Handle Available
- Adjustable Stem Packing with Blow-Out Proof Stem
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than 0.25% Lead Content
- Repair Kits Available
Certifications/Approvals
- UL Listed
- MHKZ Manual Valves
- YQNZ Compressed Gas Shut-Off Valves
- YRBX Flammable Liquid Shut-Off Valves
- YRPV Gas Shut-Off Valves
- YSDT LP Gas Shut-Off Valves
- YQAR Anhydrous Ammonia Shut-Off Valves
- API 598
- ANSI B.20.1
- ANSI B.16.11
- MSS SP-110
- NACE Certified
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
2"
Port
Full Port
Design Type
5-Piece
End Connection
Double Union with NPT Threaded Ends
Body Material
CF8M Stainless Steel
Ball Material
CF8M Stainless Steel
Handle Type
Reversible Handle
Seat Material
Hostaflon TFM 1600
Stem Material
316 Stainless Steel
Stem Design
Adjustable Stem Packing with Blowout Proof Stem
Max Pressure
3000 psi WOG, 150 psi steam
