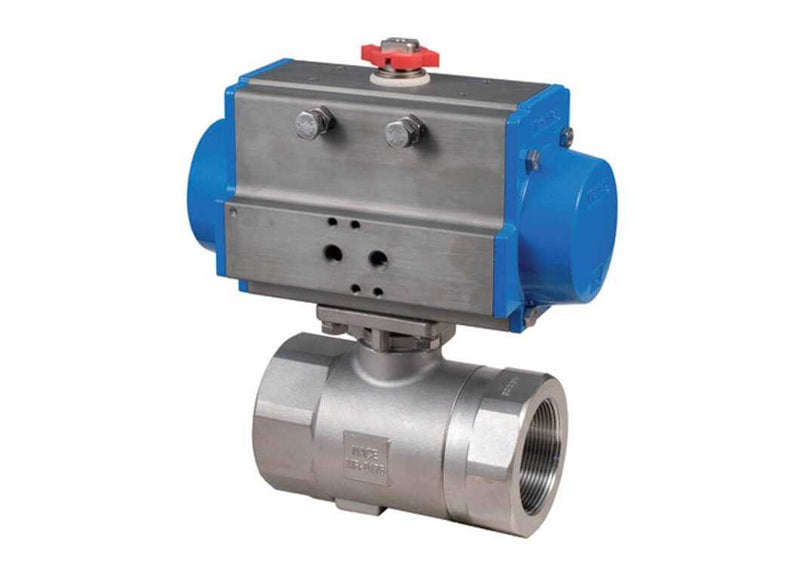

2" Bonomi 8P3102 - Ball Valve, 2 Piece, 2-Way, Stainless Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator

Name: 2" Bonomi 8P3102 - Ball Valve, 2 Piece, 2-Way, Stainless Steel, FNPT Threaded, Full Port, with Spring Return Pneumatic Actuator
Brand: Bonomi Valves
SKU: 8P3102-2

SKU: 8P3102-2

$1,109.99 Was: $1,307.00 You Save $197.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Size2"

Pressure Rating3000 psi (100°F) (Refer to P/T Chart)

Body MaterialCF8M Stainless Steel

End ConnectionThreaded (FNPT)

PortFull Port 1/4" to 1 ", Reduced Port 2"

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Pneumatically Actuated Ball Valve
Design Type	2-Piece
Air Supply Needed	80 PSI
Actuation Type	Spring Return
Brand	Bonomi Valves
Manufacturer Part #	8P3102-2
Size	2"

Materials & Construction

Body Material	CF8M Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	Delrin
Packing Material	P.T.F.E.
Stem Design	Blowout Proof

Performance

Pressure Rating	3000 psi (100°F) (Refer to P/T Chart)
Temp. Rating	-20°F to 185°F (Refer to P/T Chart)

Connections

Port	Full Port 1/4" to 1 ", Reduced Port 2"
End Connection	Threaded (FNPT)

Standards & Certifications

See Specification Sheet
