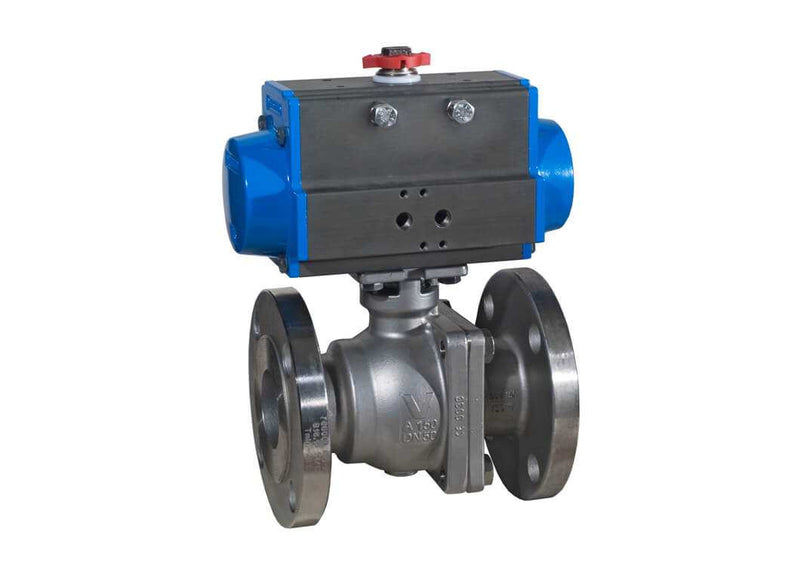

2" Bonomi 8P766000 - Stainless Steel, Full Port, Flanged, Ball Valve w/ Double Acting Actuator
SKU:
8P766000-2
$1,033.99
Price on request
Was: $1,218.00
You Save $184.01
Available to Order
Size2"
Pressure Rating275 PSIG
Body MaterialA351-CF8M
End Connection150# Flanged
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Pneumatic Ball Valve |
|---|---|
| Design Type | 2-Piece |
| Control | Modulating (4-20mA) |
| Available Voltages | 12V - AC/DC |
| Actuation Type | Double Acting |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8P766000-2 |
| Size | 2" |
Materials & Construction
| Body Material | A351-CF8M |
|---|---|
| Ball Material | A216-316 A351-CF8M |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 275 PSIG |
|---|---|
| Temp. Rating | -4F to 366F |
| NEMA Rating | NEMA 4/4x |
Connections
| Port | Full Port |
|---|---|
| End Connection | 150# Flanged |
Standards & Certifications
See Specification Sheet
