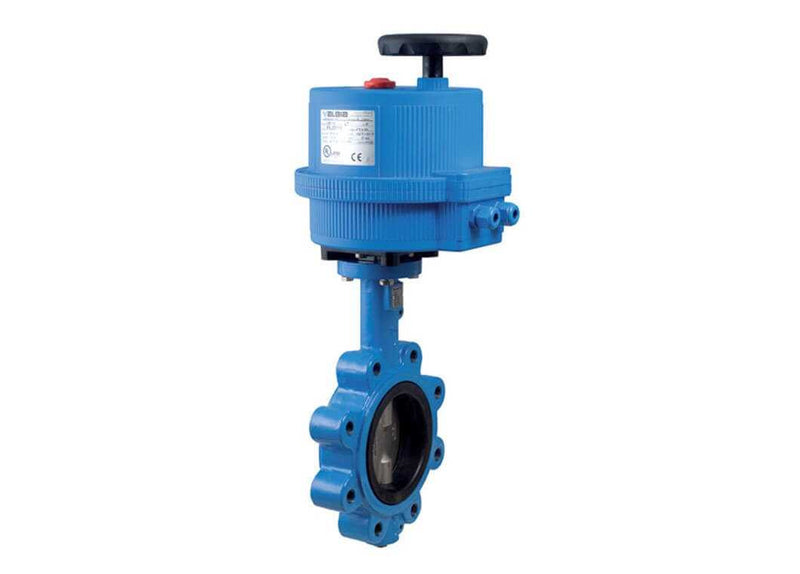

2" Bonomi EN501S-00- Butterfly Valve, Lug Style, Ductile Iron Body, 316 Stainless Steel Disc, EPDM Seat, with Valbia Electric Actuator

Name: 2" Bonomi EN501S-00- Butterfly Valve, Lug Style, Ductile Iron Body, 316 Stainless Steel Disc, EPDM Seat, with Valbia Electric Actuator
Brand: Bonomi Valves
SKU: EN501S-002-2

SKU: EN501S-002-2

$638.99 Was: $752.00 You Save $113.01

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10"

Select Voltage: 24V AC/DC

Size2"

Pressure ClassN/A

Body MaterialDuctile Iron

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Electrically Actuated Butterfly Valve
Control	On/Off
Avail Voltage	100-240V - AC, 24V - AC/DC
Actuation Type	Electric
Brand	Bonomi Valves
Manufacturer Part #	EN501S-002-2
Size	2"

Materials & Construction

Body Style	Lug
Body Material	Ductile Iron
Disc Material	316 Stainless Steel
Seat Material	EPDM
Packing Material	EPDM

Performance

Pressure Class	N/A
Pressure Rating	Call Valveman
Temp. Rating	-30>
NEMA Rating	NEMA 4/4X

Standards & Certifications

See Specification Sheet
