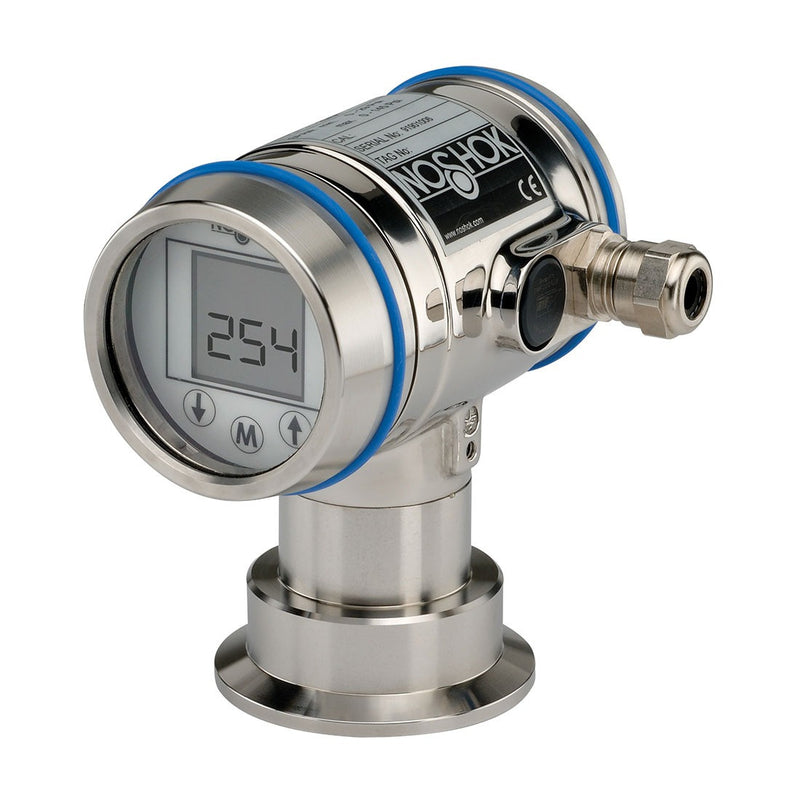

2" NOSHOK 25 Series Intelligent Pressure & Level Transmitters 254-16-40/160inH2O-1-43-71-TC, 1.45-5.8 psig 0-40 inH2O 0-160 inH2O, Tri Clamp, 0.2% Adjusted Span, 4 to 20 mA/2-Wire + Hart® Sanitary Transmitter with PG9 Cable Gland & Transparent Cover
SKU:
254-16-40/160inH2O-1-43-71-TC
Made in the United States
$1,671.99
Price on request
Available
Tri-Clamp Size2 in
Pressure Range1.45 to 5.8 psig
Electrical ConnectionPG9 cable gland
Storage Temperature [Min]-20 ºC-4 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Pressure and Level Transmitter |
|---|---|
| Tri-Clamp Size | 2 in |
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 0.2 % of adjusted span % |
| Output Signal | 4 mA to 20 mA 2-wire, 4 mA to 20 mA 2-wire and Hart® signal |
| Series | 25 |
| Adjustment | By 3 push buttons on display or optional Hart® signal |
| Response Time | <100 ms |
| Service Life | <10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C or Tantalum optional) |
| Brand | NOSHOK |
| Manufacturer Part # | 254-16-40/160inH2O-1-43-71-TC |
| Size | 2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | 304 Stainless Steel, 316 Stainless Steel |
|---|
Performance
| Storage Temperature [Min] | -20 ºC-4 ºF |
|---|---|
| Storage Temperature [Max] | 100 ºC212 ºF |
| Environmental Rating | Ingress Protection (IP66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (IP68) (National Electrical Manufacturers Association (NEMA) 6) optional |
| Pressure Range | 1.45 to 5.8 psig |
Connections
| Electrical Connection | PG9 cable gland |
|---|---|
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Weight | 2.2 lb |
|---|
Overview
25 Series - Intelligent Pressure & Level Transmitters
- Easy programming and range adjustment without test pressure via on-board display
- 4:1 turn down
- Active temperature compensation
- Hart® protocol output available
- All Stainless Steel housing and wetted parts
