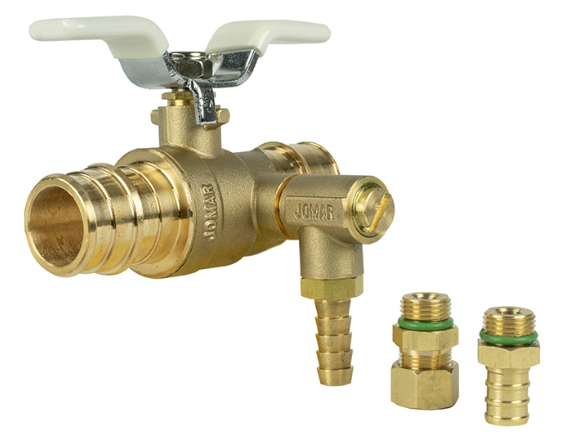

3/4" Jomar Valve JF-100RVG, 2 Piece, Full Port, Dezincification Resistant Lead-Free Brass, Expansion Pex Connection, Stainless Steel Ball & Stem, Thermal Expansion Relief Valve, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $97.91
$70.99
(You save
$26.92
)
- SKU:
- 104-080RVSSG
- Processing Time:
- 1-2 Days
3/4" Jomar Valve JF-100RVG 2 Piece Ball Valve, Expansion PEX Connection Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Side Discharge
- Includes Connections: 3/8" Barb, 1/2" Pex, 3/8" Compression Fittings
- Available in 80, 100, 125 PSI
- IAPMO Certified - NSF 61 & NSF 372
- IAPMO Certified - CSA B125.3 & IGC128
- ASTM F1960
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- IAPMO Certified
- ANSI/NSF 61-08
- ANSI/NSF 372
- CSA B125.3
- CSA IGC128
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
Technical Specifications
Item
Ball Valve
Size
3/4"
Port
Full Port
Design Type
2-Piece
End Connection
Expansion PEX
Body Material
Lead-Free Brass
Ball Material
Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
Stainless Steel
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
500°F
