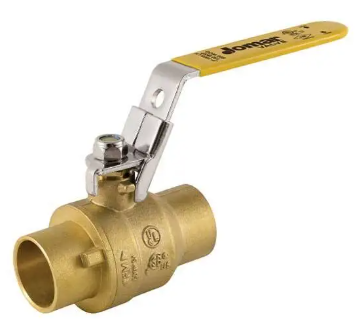

3/4" Jomar Valve JF-100S-LH, 2 Piece, Full Port, Brass, Soldered Ends, Latch Lock Handle, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $29.20
Starting At:
$20.99
(You save
$8.21
)
- SKU:
- 100-114-LH
- Size:
- 3/4"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
3/4" Jomar Valve JF-100S-LH 2 Piece Ball Valve Technical Specs
Features
- Gland Follower and Single O-Ring Stem Design
- Latch Locking Handle
- Blow-Out Proof Stem
- 100% Leak Tested
Certifications/Approvals
- UL Listed up to 600 PSIG (1/4" - 1"), 300 PSIG (1-1/4" - 2")
- MHKZ - Manual Valves
- YRPV - Gas Shut-Off Valves
- MSS SP-110
- ASME/ANSI B16.18
Technical Specifications
Item
Ball Valve
Size
3/4"
Port
Full Port
Design Type
2-Piece
End Connection
Solder
Body Material
Brass C37700
Ball Material
Chrome Plated Brass
Handle Type
Latch Lock Handle
Seat Material
PTFE
Stem Material
Brass
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
