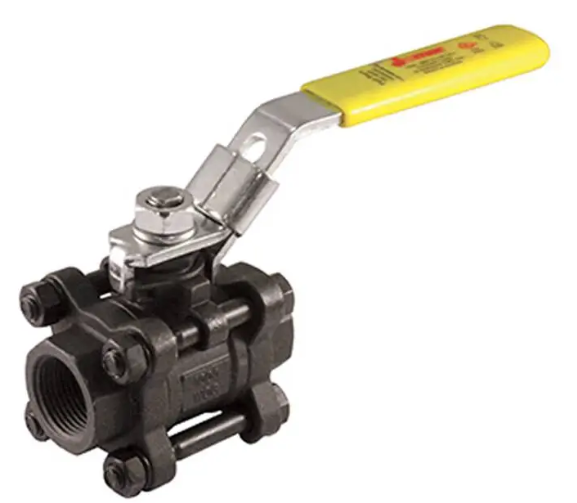

3/4" Jomar Valve T-CS-1000N-SS-4B, 3 Piece, 4 Bolt, Full Port, Carbon Steel, Swing Out Body, NPT Threaded, Stainless Steel Ball & Stem, 1000 WOG Ball Valve

Brand : Jomar Valve

MSRP: $89.73
Starting At: $64.99
(You save $24.74 )
Size Dropdown:
True

3/4" Jomar Valve T-CS-1000N-SS-4B 3 Piece Ball Valve Technical Specs

Features

  • Latch Lock Handle May be Locked in Open or Closed Position
  • 100% Leak Tested
  • 29 in-Hg Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Repair Kits Available

Certifications/Approvals

  • UL Listed
    • MHKZ - Manual Valves
    • YQNZ - Compressed Gas Shut-Off Valves
    • YRBX - Flammable Liquid Shut-Off Valves
    • YRPV - Gas Shut-Off Valves
    • YSDT - LP Gas Shut-Off Valves
    • YQAR - Anhydrous Ammonia Shut-Off Valves
  • MSS SP-110
  • NACE Certified
  • ANSI B1.20.1
  • ANSI B16.11
  • Conforms to API 598
  • Buy American Act Compliant

Technical Specifications

Item
Ball Valve
Size
3/4"
Port
Full Port
Design Type
3-Piece, 4 Bolt Swing out Body
End Connection
NPT Threaded
Body Material
WCB Carbon Steel
Ball Material
CF8M Stainless Steel
Handle Type
Latch Lock Handle
Seat Material
Hostaflon TFM
Stem Material
316 Stainless Steel
Max Pressure
1000 psi WOG, 150 psi steam
