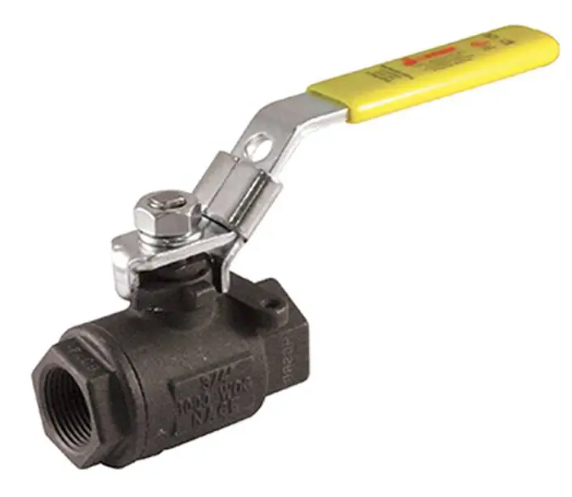

3/4" Jomar Valve T-CS-1001N-SS, 2 Piece, Full Port, Carbon Steel, NPT Threaded, Stainless Steel Ball & Stem, 1000 WOG Ball Valve
Brand : Jomar Valve
MSRP: $69.58
Starting At:
$49.99
(You save
$19.59
)
- Size Dropdown:
- True
3/4" Jomar Valve T-CS-1001N-SS 2 Piece Ball Valve Technical Specs
Features
- Solid Ball Construction
- Latch Lock Handle May be Locked in Open or Closed Position
- 100% Leak Tested
- 29 in-HG Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- UL Listed
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- YQAR - Anhydrous Ammonia Shut-Off Valves
- Conforms to API 598
- ANSI B16.34
- MSS SP-110, SP-61, SP-82
- NACE Certified
- ANSI B1.20.1
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
3/4"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
WCB Carbon Steel
Ball Material
Stainless Steel
Handle Type
Lever
Seat Material
Hostaflon TFM
Stem Material
316 Stainless Steel
Max Pressure
1000 psi WOG, 150 psi steam
