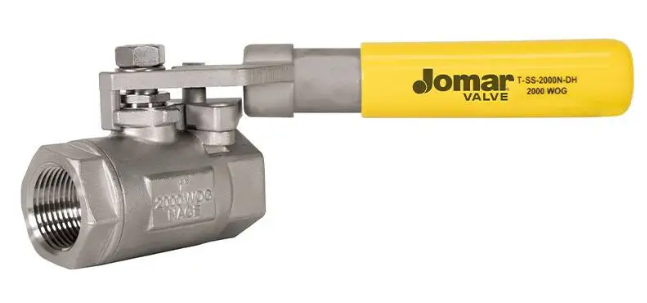

3/4" Jomar Valve T-SS-2000N-DH, 2 Piece, Standard Port, Stainless Steel, NPT Threaded, Stainless Steel Ball & Stem, Spring Return Handle, 2000 WOG Ball Valve
Brand : Jomar Valve
Starting At:
$0.99
- SKU:
- 100-934DH
- Availability:
- Call for Pricing
- Size:
- 3/4"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
3/4" Jomar Valve T-SS-2000N-DH 2 Piece Ball Valve Technical Specs
Features
- Solid Ball Construction
- Fail Safe Position
- 1-1/4" - 2": 3 Piece, 4 Bolt Pattern
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- UL Listed
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- YQAR - Anhydrous Ammonia Shut-Off Valves
- ANSI B1.20.1
- MSS SP-110
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
3/4"
Port
Standard Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
CF8M Stainless Steel
Ball Material
Stainless Steel
Handle Type
Spring Return Handle
Seat Material
Hostaflon TFM
Stem Material
316 Stainless Steel
Max Pressure
2000 psi WOG, 150 psi steam
