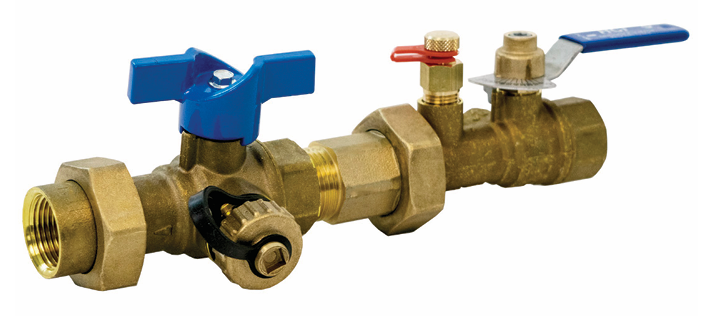

3/4" Jomar Valve TRAB, Manual Balancing Valve Recirculation Assembly, Quarter Turn, Check Valve & Isolation, NPT Threaded, Drain, 600 WOG
Brand : Jomar Valve
MSRP: $300.58
Starting At:
$214.99
(You save
$85.59
)
- SKU:
- TRAB-BFF-Q
- Size:
- 3/4"
- Size Dropdown:
- True
3/4" Jomar Valve TRAB, Manual Balancing Valve Recirculation Assembly Technical Specs
Features
- Isolation valve with integration drain
- Inline check valve
- Venturi type balancing valve
- Direct read balancing valves double as an isolation valve
- Design flow range: 0.4 GPM - 2 GPM
- 100% Pressure Tested
- Complies with Buy American Act Standards
- Patented profiled ball in the drain allows for quarter turn raining while still isolating omponents downstream
Certifications/Approvals
- NSF 372
- NSF 61-8
- MSS SP-110
- ASME/ANSI B16.8
Technical Specifications
Item
Manual Balancing Valve
Size
3/4"
Body Material
Dezincification Resistant Brass
Connection Type
NPT Threaded
Pressure Rating
400 psi WOG
Max. Temp.
325°F
