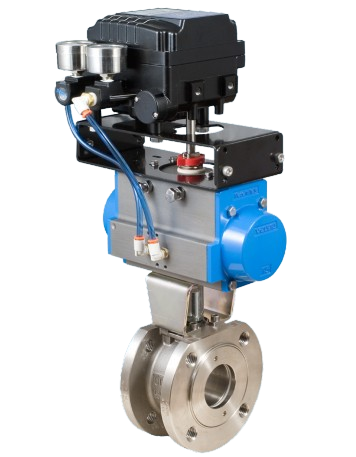

3/4" Bonomi EP720370V**SR-3/4 30°/ 60°/ 90° V-Port Ball Valve, 2-Way, Stainless Steel, ANSI 150 Flanged, Fire-Safe Wafer Style, with Spring Return Pneumatic Actuator and Electro-Pneumatic ENP-B 4-20mA Positioner
SKU:
EP720370V**SR-3/4
Made in Italy
$1,420.99
Price on request
Was: $1,674.00
You Save $253.01
Available to Order
Size3/4"
Actuator Supply PressureMin. 80 psi and Max. 116 psi
Body Material316 Stainless Steel
Connection TypeANSI 150 Flange
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) |
|---|---|
| Size | 3/4" |
| Ball Options | 30>< - 60>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Positioner | Electric ENP-B 4-20mA Positioner |
| Actuation | Spring Return (SR) pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | EP720370V**SR-3/4 |
| Country of Origin | Made in Italy |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Seat Material | PTFE |
| Ball Material | 316 Stainless Steel |
| Stem Type | Blowout Proof, Antistatic Device |
Performance
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
|---|
Connections
| Port | Full Port |
|---|---|
| Connection Type | ANSI 150 Flange |
