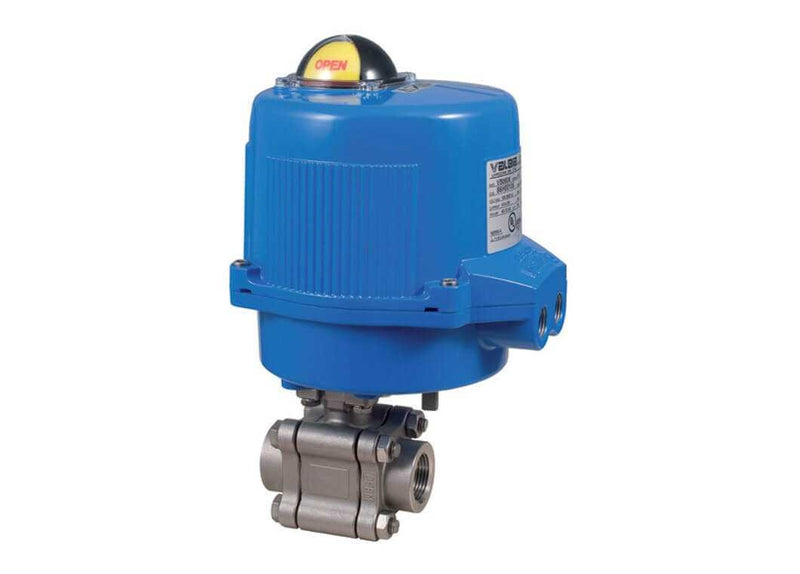

3/4" Bonomi M8E0732-00 - Ball Valve, Fire Safe, 2-Way, Stainless Steel, Butt Weld, Full Port, Direct Mount, with Metal Electric Actuator

Name: 3/4" Bonomi M8E0732-00 - Ball Valve, Fire Safe, 2-Way, Stainless Steel, Butt Weld, Full Port, Direct Mount, with Metal Electric Actuator
Brand: Bonomi Valves
SKU: M8E0732-002-3/4

SKU: M8E0732-002-3/4

$732.99 Was: $863.00 You Save $130.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Select Voltage: 24V AC/DC

Size3/4"

Pressure Rating2160 psi (Refer to P/T Chart)

Body MaterialCF8M Stainless Steel

End ConnectionButt Weld

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Design Type	3-Piece
Control	On/Off
Available Voltages	12V/24V AC/DC and 100-240V AC
Actuation Type	Electric (Fail in Place)
Brand	Bonomi Valves
Manufacturer Part #	M8E0732-002-3/4
Size	3/4"

Materials & Construction

Body Material	CF8M Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	TFM-4215
Packing Material	TFM
Stem Design	Grounded Ball and Stem

Performance

Pressure Rating	2160 psi (Refer to P/T Chart)
Temp. Rating	-4°F to +131°F
NEMA Rating	NEMA 4

Connections

Port	Full Port
End Connection	Butt Weld

Standards & Certifications

See Specification Sheet
