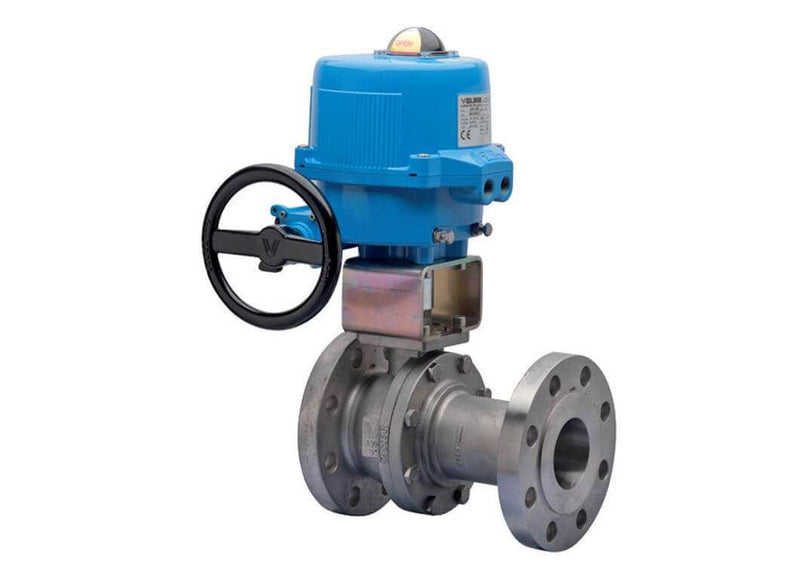

3/4" Bonomi M8E761030-00 - 2-Way, Stainless Steel, Full Port, Flanged, Ball Valve with Valbia Metal Electric Actuator
SKU:
M8E761030-002-3/4
$958.99
Price on request
Was: $1,129.00
You Save $170.01
Available to Order
Select Voltage: 24V AC/DC
Size3/4"
Pressure Rating720 psi (Refer to P/T Chart)
Body Material316 Stainless Steel
End Connection300# Flanged
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Design Type | Split Body |
| Control | On/Off |
| Available Voltages | 100-240V - AC, 24V - AC/DC, 12V - AC/DC |
| Actuation Type | N/A |
| Brand | Bonomi Valves |
| Manufacturer Part # | M8E761030-002-3/4 |
| Size | 3/4" |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | 720 psi (Refer to P/T Chart) |
|---|---|
| Temp. Rating | -4°F to 400°F (Refer to P/T Chart) |
| NEMA Rating | NEMA 4/4x |
Connections
| Port | Full Port |
|---|---|
| End Connection | 300# Flanged |
Standards & Certifications
See Specification Sheet
