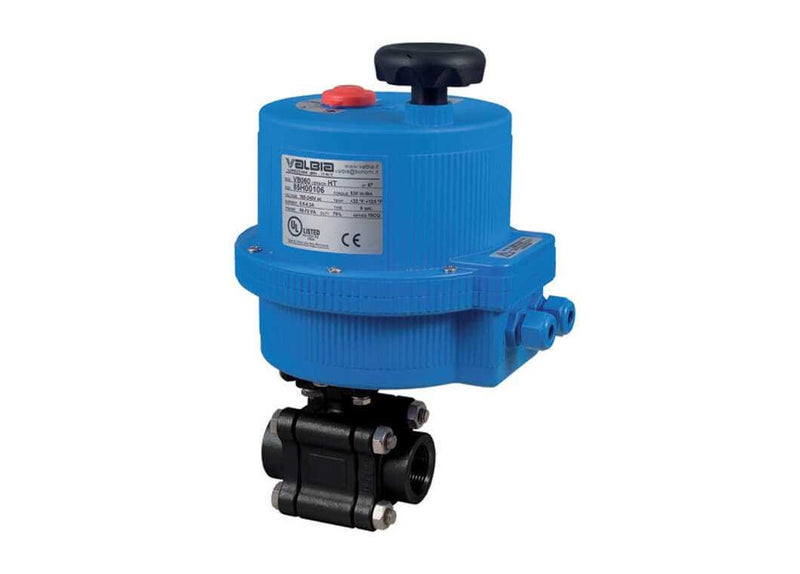

3/8" Bonomi 8E0631-00 - Ball Valve, Fire Safe, 2-way, 3-piece, Carbon Steel, Socket Weld, Full Port, with Electric Actuator

Name: 3/8" Bonomi 8E0631-00 - Ball Valve, Fire Safe, 2-way, 3-piece, Carbon Steel, Socket Weld, Full Port, with Electric Actuator
Brand: Bonomi Valves
SKU: 8E0631-002-3/8

SKU: 8E0631-002-3/8

$394.99 Was: $465.00 You Save $70.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select Voltage: 24V AC/DC

Size3/8"

Pressure Rating2200 psi

Body MaterialCarbon Steel (WCB)

Connection TypeSocket Weld

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Size	3/8"
Design Type	3-Piece
Available Actuator Voltage	12V -AC/DC
Fail Position	None (Fail in Place)
Fire Safe	API 607
Duty Cycle	50% Duty Cycle (12/24V AC)
Brand	Bonomi Valves
Manufacturer Part #	8E0631-002-3/8

Materials & Construction

Body Material	Carbon Steel (WCB)
Ball Material	316 Stainless Steel
Seat Material	TFM-4215
Stem Design	Grounded Ball and Stem
Stem Material	316 Stainless Steel
Packing Material	TFM

Performance

Pressure Rating	2200 psi
Pressure Class	Class 900
Working Steam Pressure	250 psi
Temp Rating	-50°F to 550°F
NEMA Rating	NEMA 4/4X

Connections

Port	Full Port
Connection Type	Socket Weld

Standards & Certifications

See Specification Sheet
