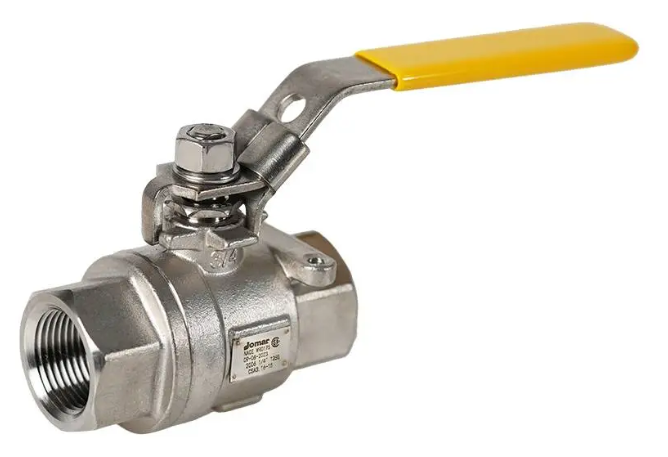

3" Jomar Valve T-SS-2000N-FP, 2 Piece, Full Port, Stainless Steel, NPT Threaded, Stainless Steel Ball & Stem, 2000 WOG Ball Valve
Brand : Jomar Valve
MSRP: $1,784.73
$1,274.99
(You save
$509.74
)
- SKU:
- 101-950
- Size:
- 3"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
3" Jomar Valve T-SS-2000N-FP 2 Piece Ball Valve Technical Specs
Features
- Solid Ball Construction
- Latch Lock May Be Locked in Open or Closed Position
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- CSA Certified
- CGA 3.16 (125 PSIG) (1/4" - 2")
- ASME B16.33 (175 PSIG) (1/4" - 2")
- UL Listed
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- YQAR - Anhydrous Ammonia Shut-Off Valves
- MSS SP-110
- Meets ISO 15848
- ANSI B1.20.1
- Buy American Act Compliant
Technical Specifications
Item
Ball Valve
Size
3"
Port
Full Port
Design Type
2-Piece
End Connection
NPT Threaded
Body Material
CF8M Stainless Steel
Ball Material
Stainless Steel
Handle Type
Lever
Seat Material
RPTFE
Stem Material
316 Stainless Steel
Max Pressure
1000 psi WOG, 150 psi steam
