3" Watts LF957RPDA-OSY-GPM-FS 3, Lead-Free Stainless Steel, Reduced Pressure Detector Backflow Preventer Assembly, OSY Gate Valve Shutoff, Gallons/Minute Meter, Backflow Flood Sensor
Brand : Watts
MSRP: $8,511.00
Starting At:
$5,925.99
(You save
$2,585.01
)
- SKU:
- LF957RPDA-OSY-GPM-FS 3
- UPC:
- 098268505221
- Size:
- 3"
- Size Dropdown:
- True
Country of Origin: Made in the United States

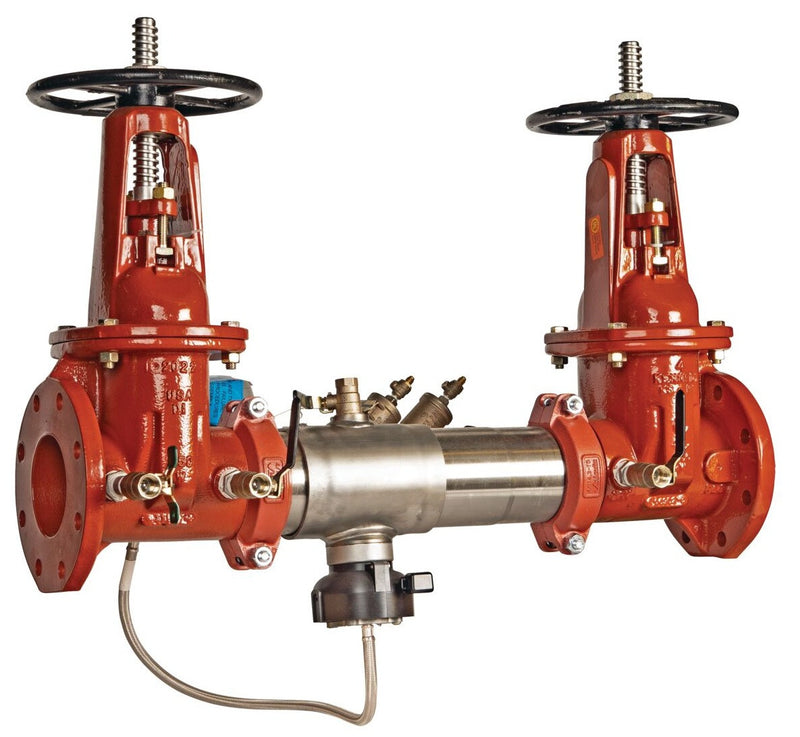

3" Watts LF957RPDA-OSY-GPM-FS 3 Reduced Pressure Detector Backflow Preventer Assembly, OSY Gate Valve Shutoff, Backflow Flood Sensor
Features
- Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Alert features available with add-on sensor connection kit
- Stainless steel housing and sleeve
- UL and FM outside stem and yoke resilient seated gate valves
- Furnished with a gallon per minute meter
- Replaceable check disc rubber
- Compact construction for smaller enclosures
- Bottom mounted relief valve reduces clearance requirements when installed against an outside wall
- Torsion spring check valves provides maximum flow at low pressure drop
Technical Specifications
Item
Backflow Preventor
Size
3"
Backflow Preventer Type
Reduced Pressure Detector
End Connection
Grooved Joint
Body Pattern
Straight
Shutoff
Outside Yoke & Stem Gate Valve
Temp. Range
33°F to 110°F
Max. Working Pressure
175 psi
View Specification Sheets Here
View Installation Manuals Here
