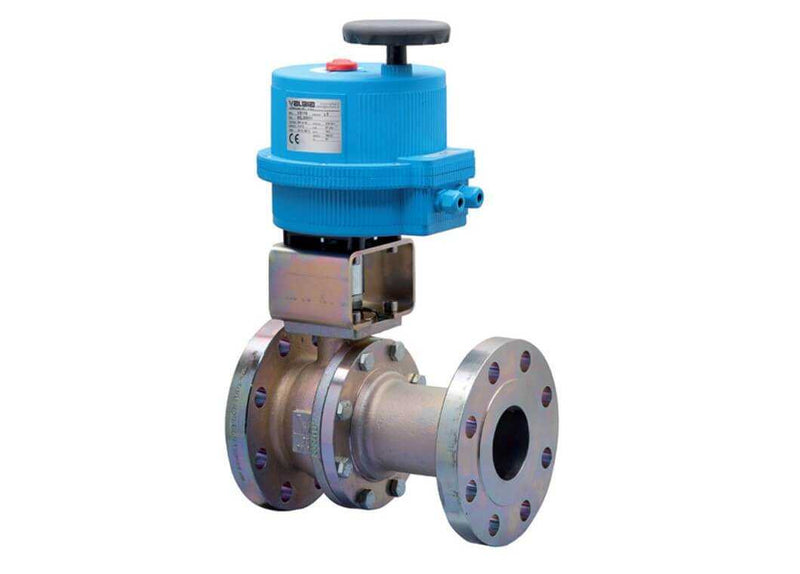

3" Bonomi 8E761031-00 - Ball Valve, Fire Safe, 2 Piece, 2-Way, Carbon Steel, Flanged, Full Port, with Electric Actuator
SKU:
8E761031-002-3
$2,023.99
Price on request
Was: $2,385.00
You Save $361.01
Available to Order
Select Voltage: 24V AC/DC
Size3"
Pressure RatingANSI 300 (Refer to P/T Chart)
Body MaterialCarbon Steel
End Connection300# Flanged
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Design Type | Split Body |
| Control | On/Off |
| Available Voltages | 100-240V - AC, 24V - AC/DC, 12V - AC/DC |
| Actuation Type | Electric (Fail in Place) |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8E761031-002-3 |
| Size | 3" |
Materials & Construction
| Body Material | Carbon Steel |
|---|---|
| Ball Material | 304 Stainless Steel |
| Seat Material | R.P.T.F.E. |
| Packing Material | P.T.F.E. |
| Stem Design | Blowout Proof |
Performance
| Pressure Rating | ANSI 300 (Refer to P/T Chart) |
|---|---|
| Temp. Rating | -4°F to +131°F |
| NEMA Rating | NEMA 4/4x |
Connections
| Port | Full Port |
|---|---|
| End Connection | 300# Flanged |
Standards & Certifications
See Specification Sheet
