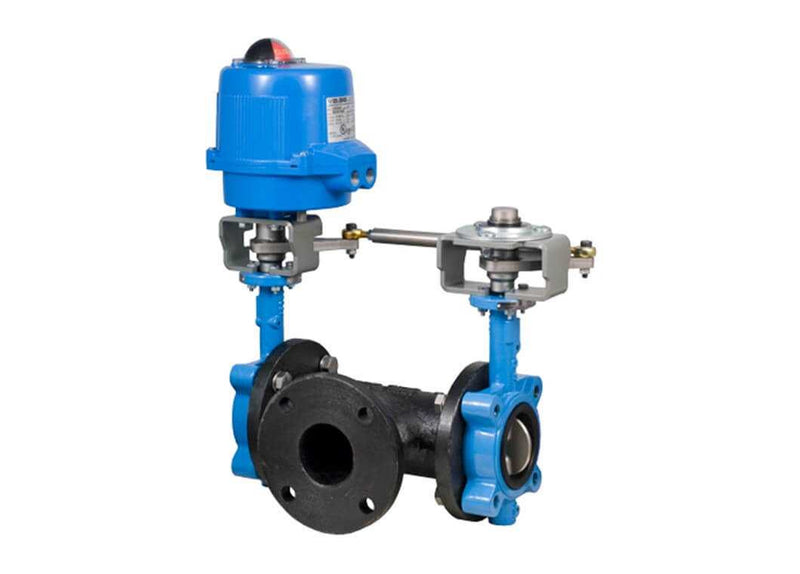

3" Bonomi MEN501S-T*-00- Butterfly Valve, 3-Way, T Assembly, Lug Style, Ductile Iron Body, CF8M Stainless Steel Disc, EPDM Seat, with Metal Electric Actuator

Name: 3" Bonomi MEN501S-T*-00- Butterfly Valve, 3-Way, T Assembly, Lug Style, Ductile Iron Body, CF8M Stainless Steel Disc, EPDM Seat, with Metal Electric Actuator
Brand: Bonomi Valves
SKU: MEN501S-T*-002-3

SKU: MEN501S-T*-002-3

$1,840.99 Was: $2,169.00 You Save $328.01

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8"

Select Voltage/Accessories: 002: 24V AC/DC Metal On/Off Electric Actuator

Size3"

Pressure ClassANSI 150

Body MaterialDuctile Iron

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Electrically Actuated Butterfly Valve T Assembly
Control	On/Off
Available Voltage	12V/24V AC/DC and 100-240V AC
Actuation Type	Electric (Fail in place)
Brand	Bonomi Valves
Manufacturer Part #	MEN501S-T*-002-3
Size	3"

Materials & Construction

Body Style	Lug
Body Material	Ductile Iron
Disc Material	CF8M Stainless Steel
Seat Material	EPDM
Packing Material	EPDM

Performance

Pressure Class	ANSI 150
Pressure Rating	250 PSI
Temp. Rating	-4>
NEMA Rating	NEMA 4

Standards & Certifications

See Specification Sheet
