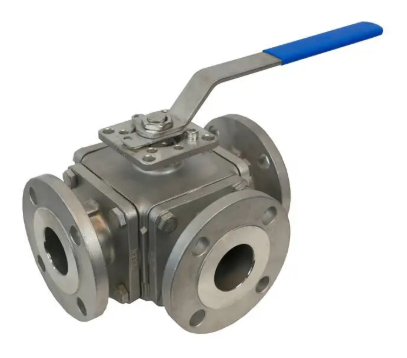

3" Jomar Valve A766L, 3-Way, L-Port, Full Port, Stainless Steel, Flanged, ISO Mounting Pad, Class 150 Ball Valve

Name: 3" Jomar Valve A766L, 3-Way, L-Port, Full Port, Stainless Steel, Flanged, ISO Mounting Pad, Class 150 Ball Valve
Brand: Jomar Valve
SKU: A766L-3

SKU: A766L-3

$3,617.99 Was: $5,064.64 You Save $1,446.65

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/2" 2" 2-1/2" 3" 4"

Size3"

Pressure ClassClass 150

Body Material316 Stainless Steel

End ConnectionFlange

PortFull Port

Typically ships in 1–2 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	3-Way Ball Valve (L-Port)
Size	3"
Design Type	1-Piece with ISO Mounting Pad
Brand	Jomar Valve
Manufacturer Part #	A766L-3

Materials & Construction

Body Material	316 Stainless Steel
Stem Design	Blowout Proof Stem

Performance

Pressure Class	Class 150
Max Pressure	200 psi WOG

Connections

Port	Full Port
End Connection	Flange
