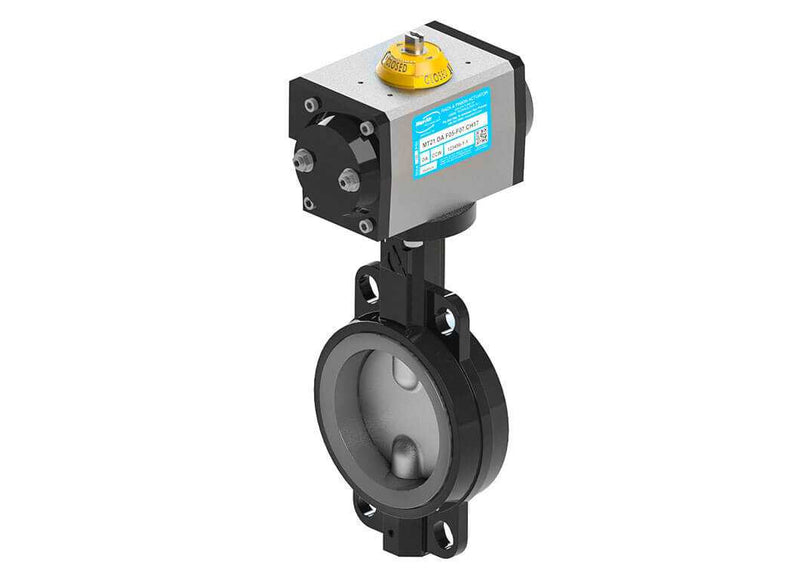

3" Max-Air 030-050-962-S8240-MA - Wafer Style Butterfly Valves, Spring Return Pneumatic, Epoxy Coated Ductile Iron Body, Stainless Steel Disc, VITON Seat

Name: 3" Max-Air 030-050-962-S8240-MA - Wafer Style Butterfly Valves, Spring Return Pneumatic, Epoxy Coated Ductile Iron Body, Stainless Steel Disc, VITON Seat
Brand: Max-Air
SKU: 030-050-962-S8240-MA

SKU: 030-050-962-S8240-MA

$569.99 Was: $752.10 You Save $182.11

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Size3"

Pressure Rating200 PSI

Body MaterialEpoxy Coated Ductile Iron

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Spring Return Pneumatic
Brand	Max-Air
Manufacturer Part #	030-050-962-S8240-MA
Size	3"

Materials & Construction

Body Style	Wafer
Body Material	Epoxy Coated Ductile Iron
Disc Material	Stainless Steel
Seat Material	VITON

Performance

Pressure Rating	200 PSI
Temp. Rating	+0°F to +392°F
Pressure Class	Class 150

Standards & Certifications

NSF372
