4-1/2" NOSHOK 600/700 Series Process Dry & Liquid Filled Pressure Gauges, 45-740-3000-psi/kg/cm2-1/4, 316 Stainless Steel Internals, 3,000 psi/kg/cm², 1/4" NPT Male Bottom Connection
SKU:
45-740-3000-psi/kg/cm2-1/4
Made in the United States
$104.99
Price on request
Was: $221.80
You Save $116.81
Available
Connection Size1/4 in
Pressure Range0 to 3,000 psi
Connection TypeNational Pipe Thread (NPT)
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Pressure Gauge |
|---|---|
| Full Scale Accuracy (±) | 0.5 % |
| Lens | Acrylic |
| Dial | Aluminum, white background with black scale. UV resistant. |
| Gauge Size | 4.5 in |
| Scale Option | psi/kg² Dual Scale |
| Case Type | Stainless Steel (SS), Dry, Bottom Connection |
| Measuring Element | 316 Stainless Steel Coiled Safety Bourdon Tube |
| Series | 700 |
| Pointer | Balanced micro-adjustable aluminum, black finish |
| Movement | Stainless steel with highly polished bearing surfaces. An internal zero stop is standard. |
| Warranty | 1 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 45-740-3000-psi/kg/cm2-1/4 |
| Size | 4-1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Bayonet Ring Material | Threaded Black PBT |
|---|---|
| Case Material | Turret Style Black Polypropylene Case Solid Front, Safety Case with Blow-Out Back |
Performance
| Pressure Range | 0 to 3,000 psi |
|---|
Connections
| Connection Type | National Pipe Thread (NPT) |
|---|---|
| Connection Size | 1/4 in |
| Connection Location | Bottom |
| Connection Material | 316 Stainless Steel |
Overview

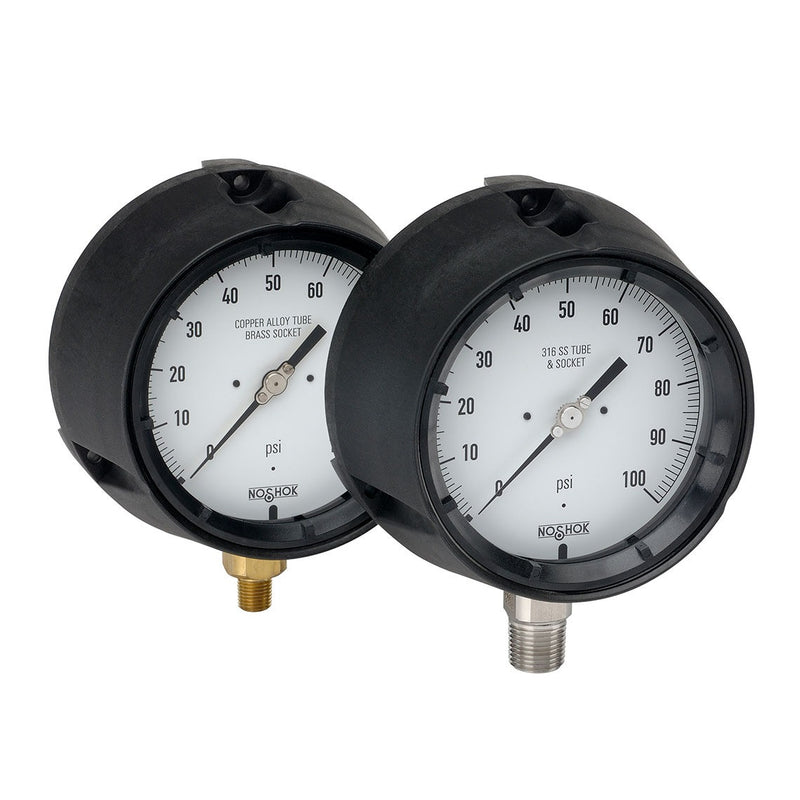

600/700 Series - Process Dry & Liquid Filled Pressure Gauges
- Turret style dry (field fillable) and liquid filled process gauges
- Vacuum and compound ranges through 0 psi to 15,000 psi
- Black Polypropylene safety case with solid front and blow out back
- 316 Stainless Steel or Brass wetted parts
- Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
- For gauges with MIP, GY40 fill is standard for liquid filled gauges
