Save 9%

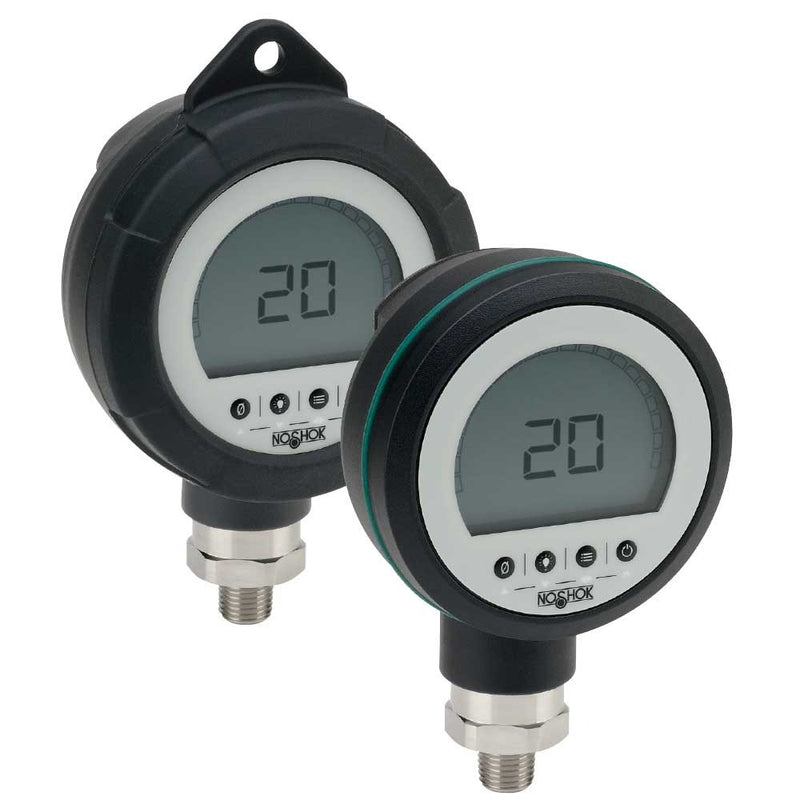

4-1/2" NOSHOK PGE20 Series General Purpose Digital Gauge PGE20-10PSIG-2-2-DL, 0 to 10 psig, ±0.25% Full Scale, Data Logging
SKU:
PGE20-10PSIG-2-2-DL
Made in the United States
$983.99
Price on request
Was: $1,093.10
You Save $109.11
Available
Size4-1/2"
Pressure Range0 psig to 10 psig
Process Connection1/4" NPT Male
Operating Temperature [Min]-10°C / 14°F
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Accuracy | ±0.25% Full Scale |
|---|---|
| Measuring Element | 316L Stainless Steel |
| Case | PBT with 30% glass fiber |
| Display | Back-lighting: activated via buttonBar graph: 0 to 100% in 5% stepsResolution: 4 1/2 digits |
| Power Requirement | 3 x 1.5 V AA Alkaline batteriesTypically > 4,000 hours |
| Response Time | 200 ms |
| Programmable Functions | Adjustable via front keypadUnits: psi, bar, mbar, MPa, kg/cm², and 1 custom |
| Options | Integrated Data Logger |
| Accessories / Uninstalled Options | PGE20-GC1: Gauge Carrying Case (1 gauge)PGE20-GC3: Gauge Carrying Case (3 gauges)PGE20-IC: Interface cable (Micro USB to USB cable 2m) |
| Brand | NOSHOK |
| Manufacturer Part # | PGE20-10PSIG-2-2-DL |
| Size | 4-1/2" |
| Country of Origin | Made in the United States |
Performance
| Pressure Range | 0 psig to 10 psig |
|---|---|
| Operating Temperature [Min] | -10°C / 14°F |
| Operating Temperature [Max] | 50°C / 122°F |
| Media Temperature [Min] | -20°C / -4°F |
| Media Temperature [Max] | 50°C / 122°F |
| Storage Temperature [Min] | -18°C / 0°F |
| Storage Temperature [Max] | 55°C / 130°F |
| Proof Pressure | > 7,500 psi: 1.43 times full scale70 psi: 3 times full scale100 to 7,500 psi: 2 times full scale |
| Burst Pressure | > 7,500 psi: 2 times full scale70 psi: 4 times full scale100 to 7,500 psi: 3 times full scale |
| Environmental Rating | IP65 |
Connections
| Process Connection | 1/4" NPT Male |
|---|
Dimensions & Weight
| Weight | 0.77 lb |
|---|
