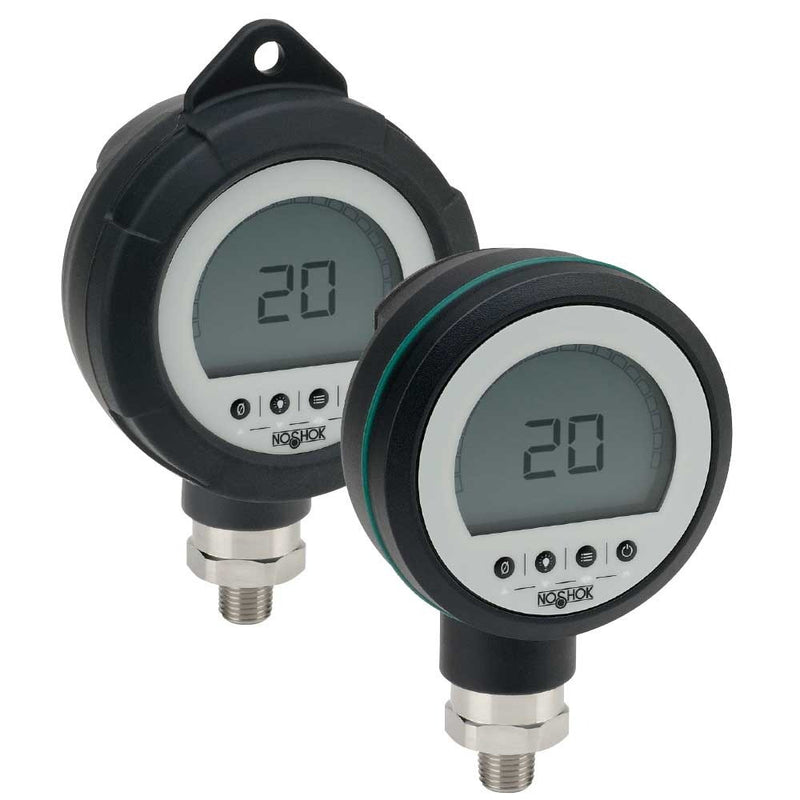

4-1/2" NOSHOK PGE20 Series General Purpose Digital Gauge PGE20-5PSIG-1-2-DL, 0 to 5 psig, ±0.50% Full Scale, Data Logging
SKU:
PGE20-5PSIG-1-2-DL
Made in the United States
$886.99
Price on request
Was: $985.02
You Save $98.03
Available
Size4-1/2"
Pressure Range0 psig to 5 psig
Process Connection1/4" NPT Male
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Accuracy | ±0.5% Full Scale |
|---|---|
| Media Temp [Min] | -20 ºC / -4 ºF |
| Media Temp [Max] | 50 ºC / 122 ºF |
| Storage Temp [Min] | -18 ºC / 0 ºF |
| Storage Temp [Max] | 55 ºC / 130 ºF |
| Measuring Element | 316L Stainless Steel |
| Case | PBT with 30% glass fiber |
| Options | Integrated Data Logger |
| Display | Back-lighting via buttonBar graph: 0 to 100% in 5% stepsResolution: 4 1/2 digits |
| Power Requirement | 3 x 1.5 V AA Alkaline batteriesTypically > 4,000 hours |
| Response Time | 200 ms |
| Programmable Functions | Adjustable via front keypadUnits: psi, bar, mbar, MPa, kg/cm², 1 custom |
| Accessories / Options | PGE20-GC1: Case (1 gauge)PGE20-GC3: Case (3 gauges)PGE20-IC: USB Cable (2m) |
| Brand | NOSHOK |
| Manufacturer Part # | PGE20-5PSIG-1-2-DL |
| Size | 4-1/2" |
| Country of Origin | Made in the United States |
Performance
| Pressure Range | 0 psig to 5 psig |
|---|---|
| Operating Temp [Min] | -10 ºC / 14 ºF |
| Operating Temp [Max] | 50 ºC / 122 ºF |
| Proof Pressure | > 7,500 psi: 1.43x full scale≤ 70 psi: 3x full scale100–7,500 psi: 2x full scale |
| Burst Pressure | > 7,500 psi: 2x full scale≤ 70 psi: 4x full scale100–7,500 psi: 3x full scale |
| Environmental Rating | IP65 |
Connections
| Process Connection | 1/4" NPT Male |
|---|
Dimensions & Weight
| Weight | 0.77 lb |
|---|
