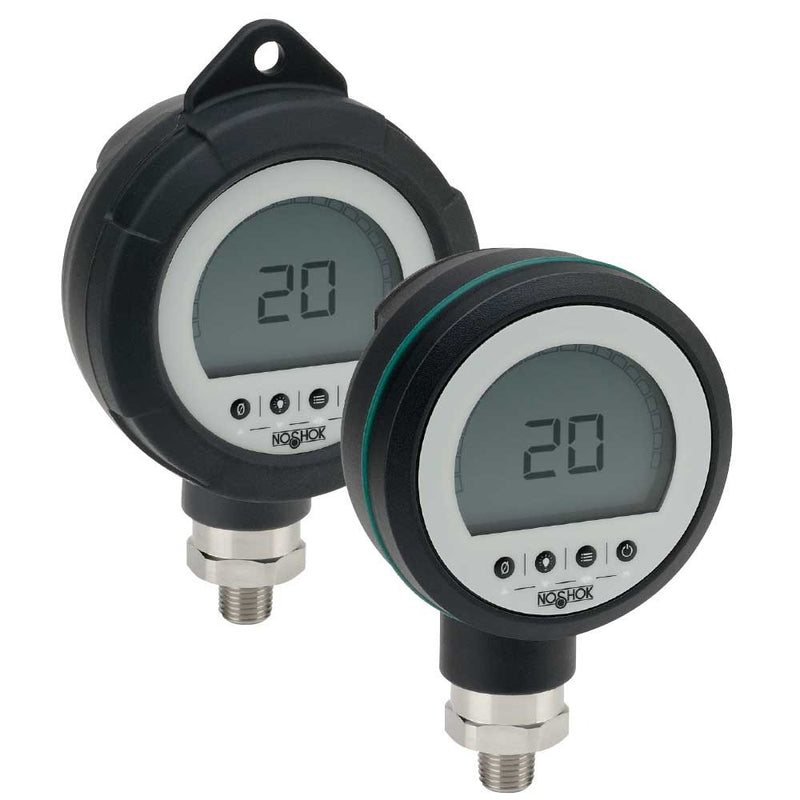

4-1/2" NOSHOK PGE20 Series General Purpose Digital Gauge PGE20-5PSIG-2-2, 0 to 5 psig, ±0.25% Full Scale
SKU:
PGE20-5PSIG-2-2
Made in the United States
$695.99
Price on request
Available to Order
Available Models
Size4-1/2"
Pressure Range0 psig to 5 psig
Process Connection1/4" NPT Male
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Rugged Electronic Gauge with 4 1/2-Digit Display |
|---|---|
| Accuracy | ±0.25% Full Scale |
| Measuring Element | 316L Stainless Steel |
| Display | 4 1/2-Digit with 0% to 100% Bar Graph, Back-Lit |
| Resolution | 4 1/2 Digits |
| Power Requirement | 3 x 1.5 V AA Alkaline Batteries, > 4,000 Hours |
| Response Time | 200 ms |
| Media Temp. Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temp. Range | -18°C to 55°C (0°F to 130°F) |
| Programmable Units | psi, bar, mbar, MPa, kg/cm², 1 User Defined Unit |
| Brand | NOSHOK |
| Manufacturer Part # | PGE20-5PSIG-2-2 |
| Size | 4-1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Case Material | PBT with 30% Glass Fiber |
|---|
Performance
| Pressure Range | 0 psig to 5 psig |
|---|---|
| Operating Temp. Range | -10°C to 50°C (14°F to 122°F) |
| Proof Pressure | 70 psi: 3x, 100-7500 psi: 2x, >7500 psi: 1.43x Full Scale |
| Burst Pressure | 70 psi: 4x, 100-7500 psi: 3x, >7500 psi: 2x Full Scale |
| Environmental Rating | IP65 |
Connections
| Process Connection | 1/4" NPT Male |
|---|
Dimensions & Weight
| Weight | 0.77 lb |
|---|
