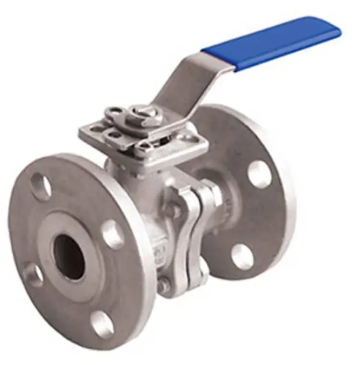

4" Jomar Valve A2020D-V, 2 Piece, Full Port, Stainless Steel, Flanged, ISO Mounting Pad, V-Ball, Class 150 Ball Valve
Brand : Jomar Valve
MSRP: $3,790.19
Starting At:
$2,707.99
(You save
$1,082.20
)
- SKU:
- A2020D-4-V
- Size:
- 4"
- Size Dropdown:
- True
- Processing Time:
- 1-2 Days
4" Jomar Valve A2020D-V, V-Ball Valve with Mounting Pad Technical Specs
Features
- Locking Device Comes Standard
- ISO 5211 Direct Mounting Pad
- Blow-Out Proof Stem
- 100% Leak Tested
- Wetted Surfaces Contains Less than .25% Lead Content
Certifications/Approvals
- Conforms to ANSI B16.34
- Flange: ANSI B16.5
- Face to Face: ANSI B16.10
- API 598
- NACE MR-01-75
Technical Specifications
Item
V-Ball Valve
Size
4"
Port
Full Port
Design Type
2-Piece with ISO Mounting Pad
End Connection
Flange
Body Material
CF8M Stainless Steel
Ball Material
316 Stainless Steel
Stem Material
316 Stainless Steel
Stem Design
Blowout Proof Stem
Pressure Class
Class 150
Max Pressure
300 psi WOG
