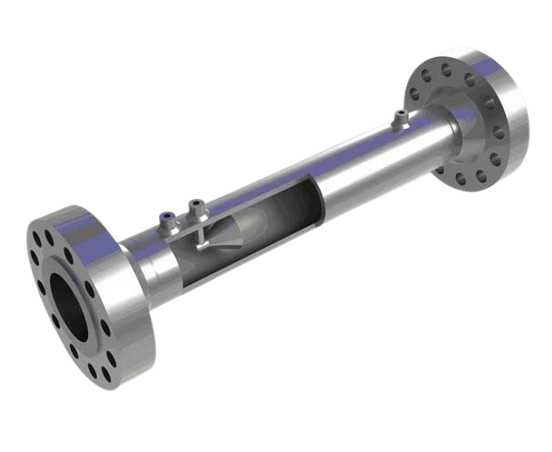

4" Tek-Trol Tek-DP 1620A-0100-C-01-A-01-C0-D-00-03-A-XX-B-01-A, Direct Mount, 304 Stainless Steel Body, 150# Flange, Cone Flow Meter
Brand : Tek-Trol
Starting At:
$7,392.99
- SKU:
- 1620A-0100-C-01-A-01-C0-D-00-03-A-XX-B-01-A
- Size:
- 4"
- Size Dropdown:
- True
4" Tek-Trol Tek-DP 1620A-0100-C-01-A-01-C0-D-00-03-A-XX-B-01-A Cone Flow Meter Technical Specs
Features
- Accuracy up to ±0.5% of flow rate.
- Suitable for 2” to 48” with flanges rating from #150 to #2500 as per ASME.
- Simple, robust and reliable.
- Extremely immune to flow disturbances.
- Eliminates straight run requirements.
- Minimize metering footprint and reduce weight.
- Maximum installation flexibility.
- Low cost and minimal maintenance.
- Suitable for difficult or severe applications.
- High repeatability.
- Full optional verification system ‘PrognosisTM’ available.
Technical Specifications
Item
Cone Flow Meter
Size
4"
End Connection
150# Flange
Body Material
304 Stainless Steel
Accuracy
±0.5% with Calibration
Line Sizes
2" to 48"
