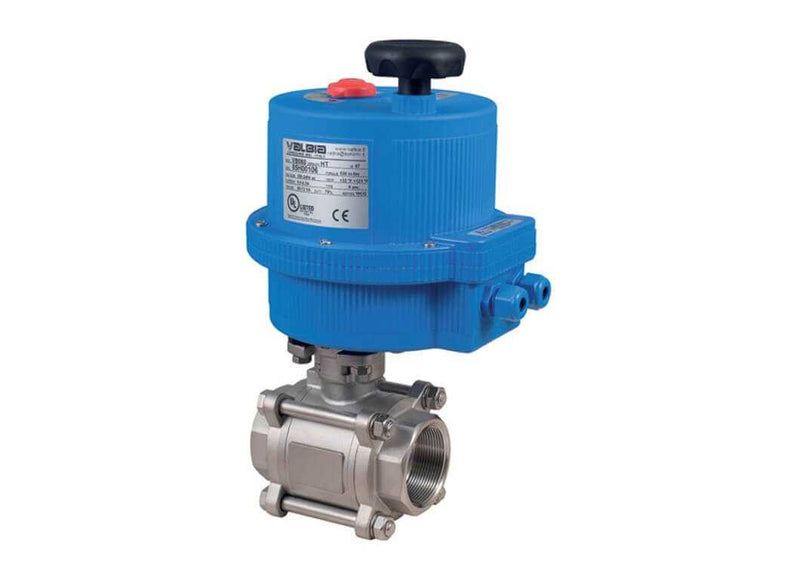

4" Bonomi 8E0722-00 - Ball Valve, 3 Piece, 2-Way, Stainless Steel, Butt Weld, Full Port, with Electric Actuator

Name: 4" Bonomi 8E0722-00 - Ball Valve, 3 Piece, 2-Way, Stainless Steel, Butt Weld, Full Port, with Electric Actuator
Brand: Bonomi Valves
SKU: 8E0722-002-4

SKU: 8E0722-002-4

$2,289.99 Was: $2,698.00 You Save $408.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

Select Voltage: 24V AC/DC

Size4"

Pressure Rating800 psi, 150 psi steam

Body MaterialCF8M Stainless Steel

End ConnectionButt Weld

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Size	4"
Design Type	3-Piece
Temp Range	-4°F to 400°F
Available Actuator Voltage	12V AC/DC
Fail Position	None (Fail in Place)
Duty Cycle	50% Duty Cycle (12/24V AC)
Brand	Bonomi Valves
Manufacturer Part #	8E0722-002-4

Materials & Construction

Body Material	CF8M Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	TFM1600
Stem Design	Blowout Proof
Stem Material	316 Stainless Steel
Packing Material	PTFE

Performance

Pressure Rating	800 psi, 150 psi steam
NEMA Rating	NEMA 4/4X

Connections

Port	Full Port
End Connection	Butt Weld

Standards & Certifications

See Specification Sheet
