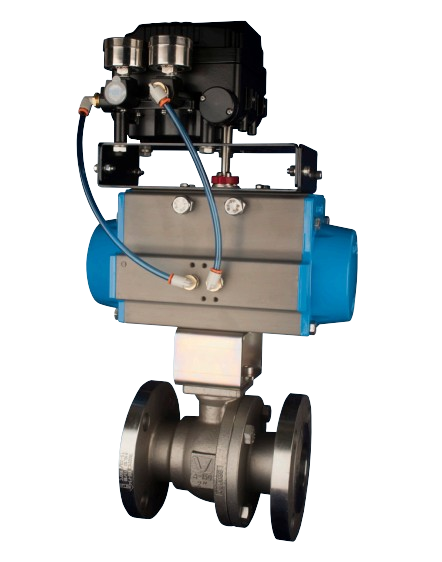

4" Bonomi EP760021V**DA-4 30-60°/60°/90° V-Port Ball Valve, 2-Way, Stainless Steel, ANSI 150 Flanged, For Steam, Split Body Style, with Double Acting Pneumatic Actuator and Electric ENP-B 4-20 mA Positioner
SKU:
EP760021V**DA-4
Made in Italy
$3,596.99
Price on request
Was: $4,238.00
You Save $641.01
Available to Order
Size4"
Max. Pressure200 psi (steam)
Body MaterialA351-CF8M Stainless Steel
Connection TypeANSI 150 Flange
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Ball Valve (V-Port) for steam |
|---|---|
| Size | 4" |
| Ball Options | 30>< - 60>< , 60>< , 90>< |
| Max. Process Temp. | -4> |
| Positioner | Electric ENP-B 4-20 mA Positioner |
| Actuation | Double Acting (DA) pneumatic |
| Brand | Bonomi Valves |
| Manufacturer Part # | EP760021V**DA-4 |
| Country of Origin | Made in Italy |
Materials & Construction
| Body Material | A351-CF8M Stainless Steel |
|---|---|
| Body Style | Split Body |
| Seat Material | PTFE |
| Ball Material | A351-CF8M Stainless Steel |
| Stem Type | Blow-out proof stem, adjustable stem packing |
| Stem Material | A276-316 Stainless Steel |
Performance
| Max. Pressure | 200 psi (steam) |
|---|---|
| Actuator Supply Pressure | Min. 80 psi and Max. 116 psi |
Connections
| Port | Full Port |
|---|---|
| Connection Type | ANSI 150 Flange |
Standards & Certifications
See Specification Sheet
