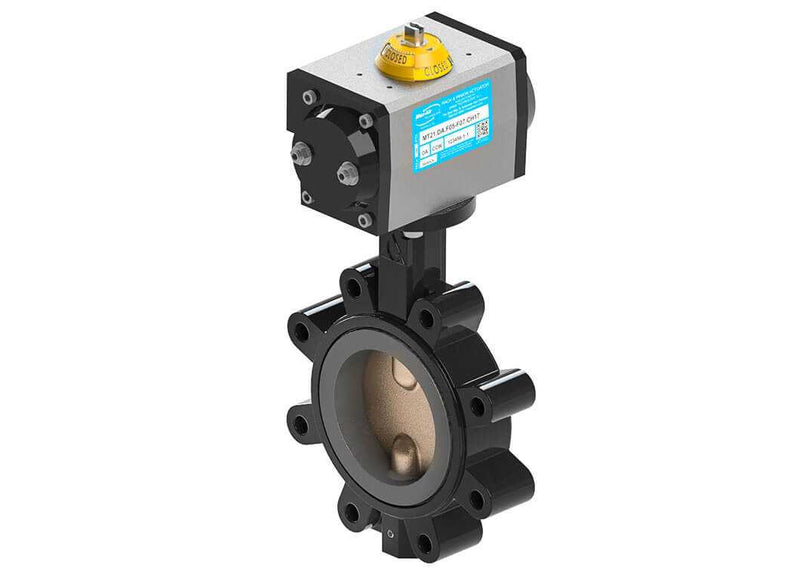

4" Max-Air 040-051-262-D8240-MA - Lug Style Butterfly Valves, Double Acting Pneumatic, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat

Name: 4" Max-Air 040-051-262-D8240-MA - Lug Style Butterfly Valves, Double Acting Pneumatic, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat
Brand: Max-Air
SKU: 040-051-262-D8240-MA

SKU: 040-051-262-D8240-MA

$361.99 Was: $477.25 You Save $115.26

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Size4"

Pressure Rating200 PSI

Body MaterialEpoxy Coated Ductile Iron

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Double Acting Pneumatic
Brand	Max-Air
Manufacturer Part #	040-051-262-D8240-MA
Size	4"

Materials & Construction

Body Style	Lug
Body Material	Epoxy Coated Ductile Iron
Disc Material	Ductile Iron Nickel Plated
Seat Material	EPDM

Performance

Pressure Rating	200 PSI
Temp. Rating	-40°F to +275°F
Pressure Class	Class 150

Standards & Certifications

NSF372
