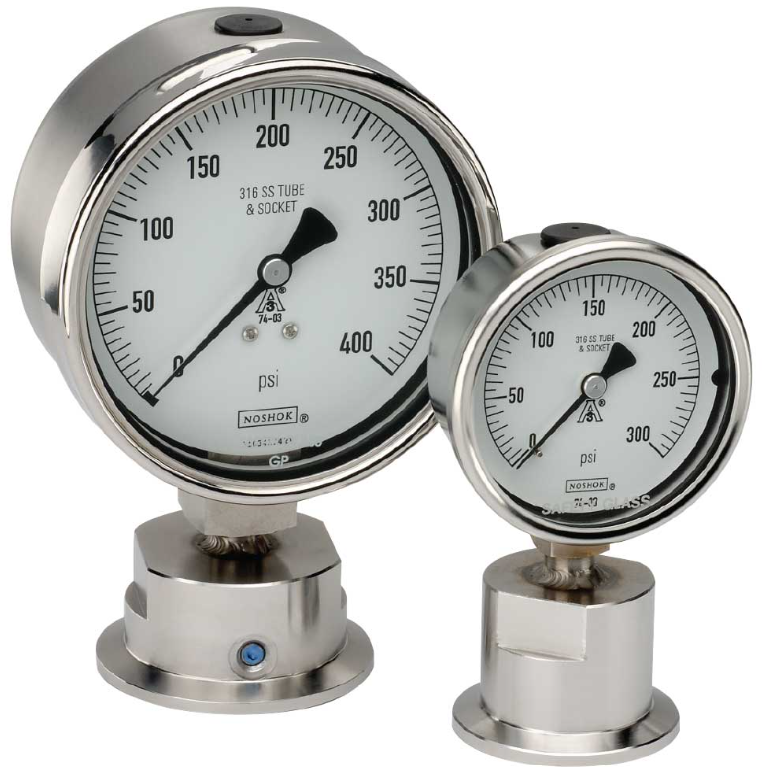

4" NOSHOK 10 Series Heavy Duty Sanitary Pressure Gauge, 1-1/2" Clamp
SKU:
NOSHOK 10 Series 4" Heavy Duty Sanitary Pressure G
Made in the United States
Starting at
$390.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Please select a model to order.
Select a model above to add to cart.
Clamp Size1-1/2 in
Pressure Range0 to 30 psig
Connection1-1/2 or 2 in. ASME-BPE Sanitary Clamp, 316L Stainless Steel, Diaphragm 316L Stainless Steel, Electropolished to 32 μin Ra or Better
Operating Temperature [Min]-4°C, 25°F
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Pressure Gauge |
|---|---|
| Series | 10 Series Heavy-Duty, Bottom Connected |
| Full Scale Accuracy (±) | 1.0 % |
| Lens | Safety Glass |
| Dial | Aluminum, White Background with Black Scale |
| Clamp Size | 1-1/2 in |
| Gauge Size | 4 in |
| Seal Fill Fluid | Glycerin |
| Gauge Fill Fluids | None |
| Measuring Element | 316 Stainless Steel "C" Tube |
| Pointer | Balanced Aluminum, Black Finish |
| Movement | Stainless Steel |
| Fill Liquid | Glycerin, USP Grade |
| Warranty | 1 yr |
| Options | None |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK 10 Series 4" Heavy Duty Sanitary Pressure G |
| Country of Origin | Made in the United States |
Materials & Construction
| Case Material | Electropolished 304 Stainless Steel |
|---|---|
| Bayonet Ring Material | Electropolished 304 Stainless Steel |
Performance
| Operating Temperature [Min] | -4°C, 25°F |
|---|---|
| Operating Temperature [Max] | 60°C, 140°F |
| Pressure Range | 0 to 30 psig |
| Media Temperature Range | -40 to 300°F, -40 to 150°C |
| Ambient Temperature Range | 25 to 140°F, -4 to 60°C |
Connections
| Connection | 1-1/2 or 2 in. ASME-BPE Sanitary Clamp, 316L Stainless Steel, Diaphragm 316L Stainless Steel, Electropolished to 32 μin Ra or Better |
|---|
