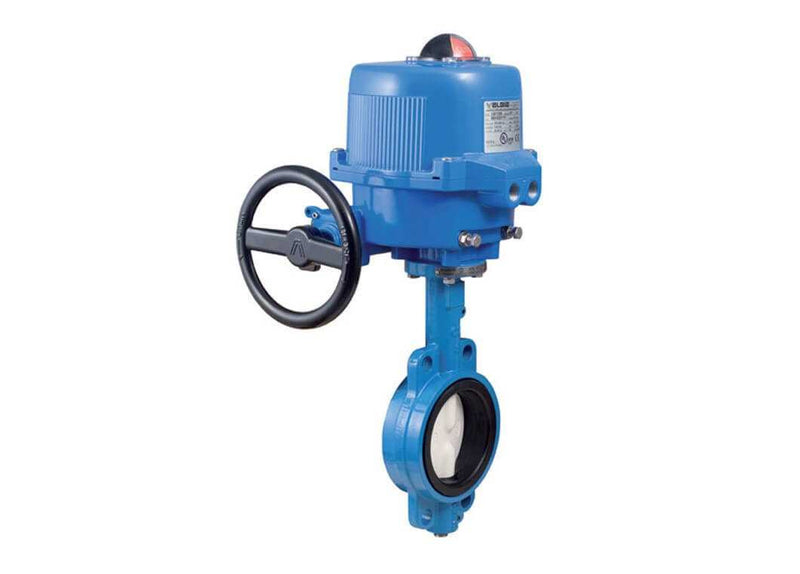

5" Bonomi ME530S-00- Butterfly Valve, Wafer Style, Cast Iron Body, Stainless Steel Disc, Viton Seat, with Valbia Metal Electric Actuator

Name: 5" Bonomi ME530S-00- Butterfly Valve, Wafer Style, Cast Iron Body, Stainless Steel Disc, Viton Seat, with Valbia Metal Electric Actuator
Brand: Bonomi Valves
SKU: ME530S-002-5

SKU: ME530S-002-5

$1,496.99 Was: $1,763.00 You Save $266.01

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10"

Select Voltage: 24V AC/DC

Size5"

Pressure ClassN/A

Body MaterialCast Iron

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Electrically Actuated Butterfly Valve
Control	On/Off
Available Voltage	100-240V - AC, 24V - AC/DC
Actuation Type	N/A
Brand	Bonomi Valves
Manufacturer Part #	ME530S-002-5
Size	5"

Materials & Construction

Body Style	Wafer
Body Material	Cast Iron
Disc Material	Stainless Steel
Seat Material	Viton
Packing Material	EPDM

Performance

Pressure Class	N/A
Pressure Rating	N/A (Refer to P/T Chart)
Temp. Rating	(10°F TO 300°F (Refer to P/T Chart)
NEMA Rating	NEMA 4/4X

Standards & Certifications

See Specification Sheet
