Save 48%

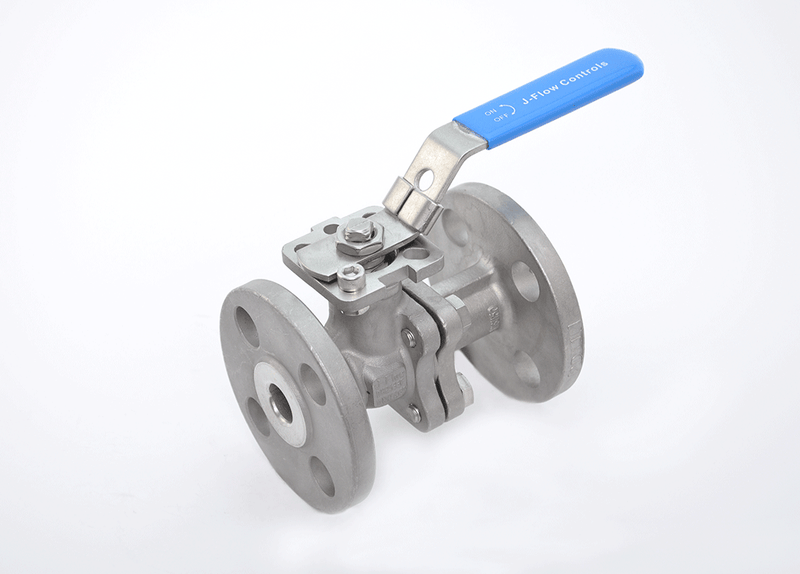

6" JFlow DM2533 - 2 Piece, Stainless Steel, 150# Flanged, Manual Ball Valve
SKU:
C-2F33FTTTF1LD
Made in Taiwan
$4,585.99
Price on request
Was: $8,915.90
You Save $4,329.91
Available to Order
Size6"
Max. Pressure285psi
Body MaterialStainless Steel
Connection Type150# Flange
Temperature Range-40F to +450F
PortFull
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Ball Valve |
|---|---|
| Size | 6" |
| O-Ring | Viton |
| Brand | JFlow Controls |
| Manufacturer Part # | C-2F33FTTTF1LD |
| Country of Origin | Made in Taiwan |
Materials & Construction
| Body Material | Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Handle Material | 304 Stainless Steel with Vinyl (6" Handle Tube: Carbon Steel) |
| Handle Type | Lever |
| Seat Material | Teflon (TFM-1600) |
| Stem Packing | Teflon (TFM-1600) |
| Stem Material | 316 Stainless Steel |
Performance
| Max. Pressure | 285psi |
|---|---|
| Temperature Range | -40F to +450F |
Connections
| Port | Full |
|---|---|
| Connection Type | 150# Flange |
