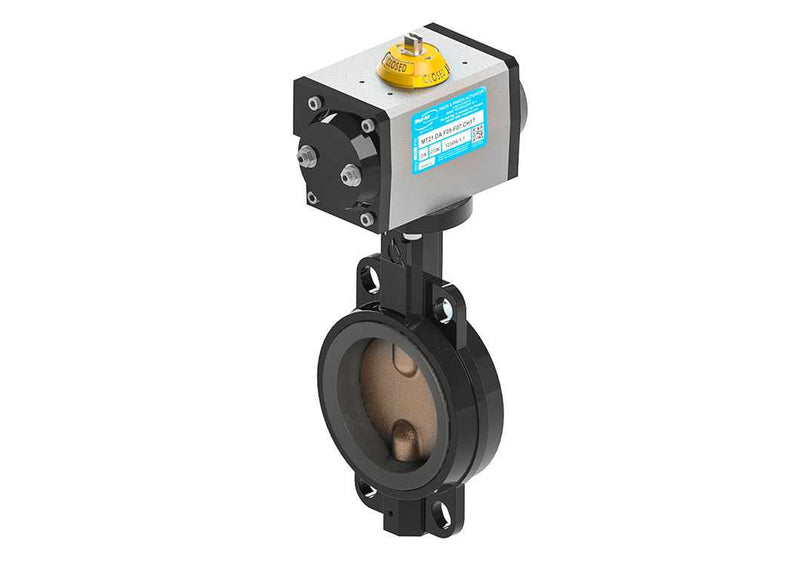

6" Max-Air 060-050-262-S8240-MA - Wafer Style Butterfly Valves, Spring Return Pneumatic, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat

Name: 6" Max-Air 060-050-262-S8240-MA - Wafer Style Butterfly Valves, Spring Return Pneumatic, Epoxy Coated Ductile Iron Body, Ductile Iron Nickel Plated Disc, EPDM Seat
Brand: Max-Air
SKU: 060-050-262-S8240-MA

SKU: 060-050-262-S8240-MA

$1,282.99 Was: $1,692.80 You Save $409.81

Available to Order

Available Sizes

2" 2-1/2" 3" 4" 5" 6" 8" 10" 12" 14" 16" 18" 20" 24"

Size6"

Pressure Rating200 PSI

Body MaterialEpoxy Coated Ductile Iron

Ships direct from the manufacturer — call 888-825-8800 for current lead time

Download CAD Drawing (PDF)

Buying for a facility?

Custom quote, volume pricing, or Net 30 terms available.

Request a Formal Quote or call 888-825-8800

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Butterfly Valves
Operation	Spring Return Pneumatic
Brand	Max-Air
Manufacturer Part #	060-050-262-S8240-MA
Size	6"

Materials & Construction

Body Style	Wafer
Body Material	Epoxy Coated Ductile Iron
Disc Material	Ductile Iron Nickel Plated
Seat Material	EPDM

Performance

Pressure Rating	200 PSI
Temp. Rating	-40°F to +275°F
Pressure Class	Class 150

Standards & Certifications

NSF372
