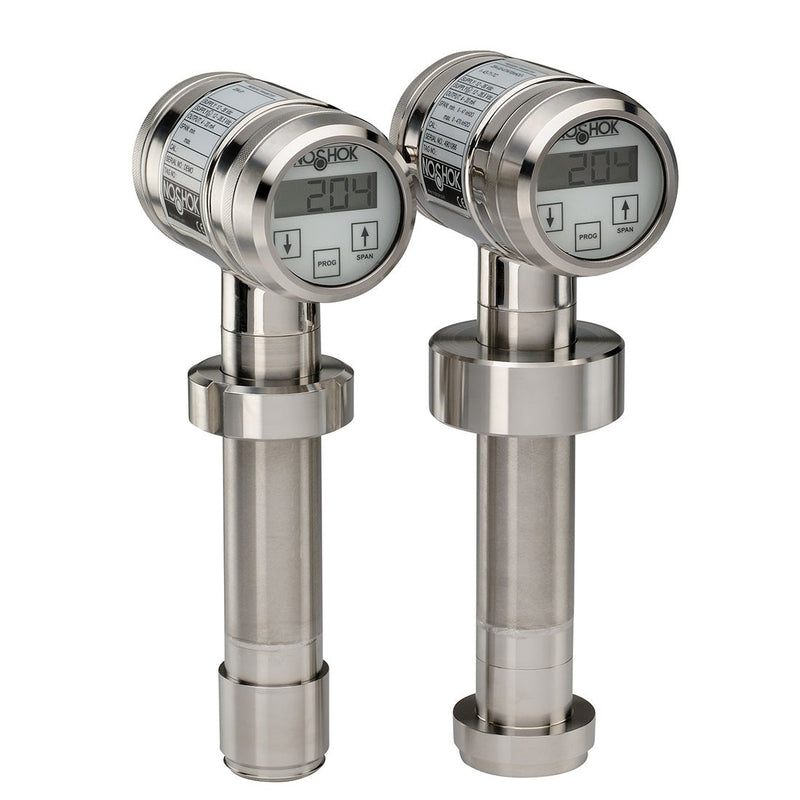

6" NOSHOK 20 Series Intelligent Silo & Tank Level Sanitary Pressure Transmitters, 0.1% of Adjusted Span, 4 to 20 mA/2-Wire + HART® Protocol, Transparent Cover
SKU:
NOSHOK 20 Series Gauges
Made in the United States
Starting at
$3,113.99
Out of Stock
Select a Model to Order This page shows the full series. Choose a specific model below to view pricing and add to cart.
Available Models
Please select a model to order.
Select a model above to add to cart.
Adjustable Pressure Range47 to 470 inH2O
Electrical Connection1/2 in. National Pipe Thread (NPT) Female
Storage Temperature [Min]-20°C-4°F
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Sanitary Pressure Transmitter |
|---|---|
| Output Signal | 4 mA to 20 mA, 2-Wire and HART® Signal |
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 0.1% of Adjusted Span % |
| Series | 20 |
| Stability | < 0.1%/year |
| Adjustment | By 3 push buttons on display or optional Hart® signal |
| Response Time | <150 ms |
| Service Life | 10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C, Tantalum or Goldplated optional) |
| Direct Current (DC) Voltage | 12 to 36 V |
| Options | Transparent Cover (for Display) (TC) |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | NOSHOK 20 Series Gauges |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | 304 Stainless Steel |
|---|
Performance
| Storage Temperature [Min] | -20°C-4°F |
|---|---|
| Storage Temperature [Max] | 100°C |
| Environmental Rating | Ingress Protection (66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (68) (National Electrical Manufacturers Association (NEMA) 6) optional |
| Adjustable Pressure Range | 47 to 470 inH2O |
| Temperature Range for 45 Minute | 145°C |
Connections
| Electrical Connection | 1/2 in. National Pipe Thread (NPT) Female |
|---|---|
| Process Connections | Anderson Negele Type SL Long - 6 in. |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Weight | 3.3 lb |
|---|
Overview
20 Series - Intelligent Silo & Tank Level Sanitary Pressure Transmitters
- Easy programming and range adjustment without test pressure via on-board display
- 10:1 turn down
- Active temperature compensation
- 360° rotatable display
- Hart® protocol output available
