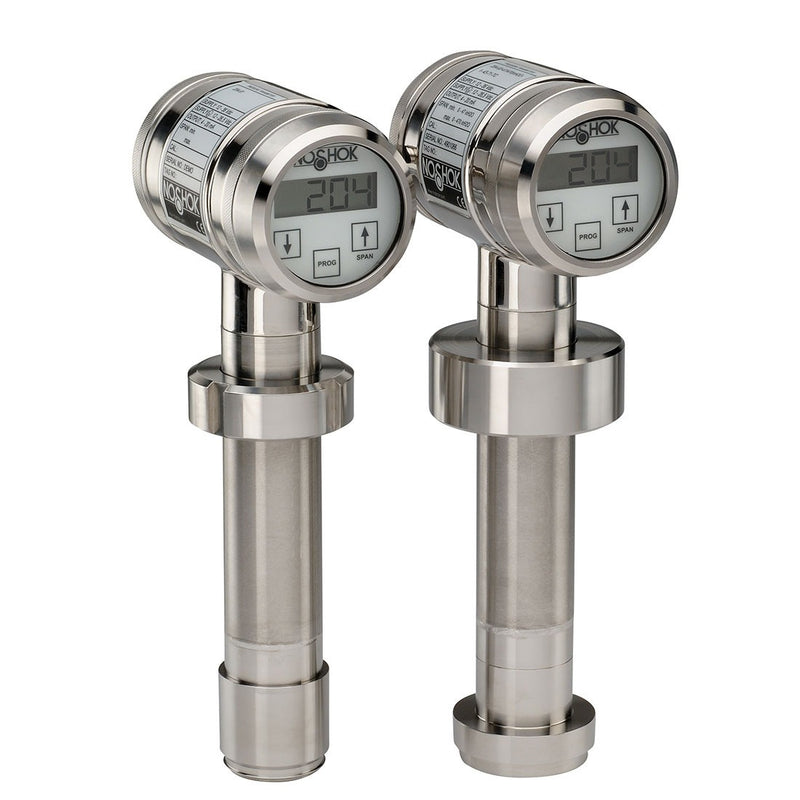

6" NOSHOK 20 Series Intelligent Silo & Tank Level Sanitary Pressure Transmitters 204-99-6/58-1-43-25-TC, Tank Mate Medium, 0 - 6 psig to 0 - 58 psig, 0.1% Span, 4 to 20 mA/2-Wire + HART®, M12 x 1 (4 Pin), Transparent Cover
SKU:
204-99-6/58-1-43-25-TC
Made in the United States
$3,167.99
Price on request
Available
Size6"
Adjustable Pressure Range160 to 1,600 inH2O
Electrical ConnectionM12 x 1 (4-pin)
Storage Temperature [Min]-20 ºC-4 ºF
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Sanitary Pressure Transmitter |
|---|---|
| Output Signal | 4 mA to 20 mA, 2-Wire and HART® Signal |
| Full Scale Best Fit Straight Line (BFSL) Accuracy (±) | 0.1% of Adjusted Span % |
| Series | 20 |
| Stability | < 0.1%/year |
| Adjustment | By 3 push buttons on display or optional Hart® signal |
| Response Time | <150 ms |
| Service Life | 10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C, Tantalum or Goldplated optional) |
| Direct Current (DC) Voltage | 12 to 36 V |
| Options | Transparent Cover (for Display) (TC) |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | 204-99-6/58-1-43-25-TC |
| Size | 6" |
| Country of Origin | Made in the United States |
Materials & Construction
| Housing Material | 304 Stainless Steel |
|---|
Performance
| Storage Temperature [Min] | -20 ºC-4 ºF |
|---|---|
| Storage Temperature [Max] | 100 ºC |
| Environmental Rating | Ingress Protection (66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (68) (National Electrical Manufacturers Association (NEMA) 6) optional |
| Adjustable Pressure Range | 160 to 1,600 inH2O |
| Temperature Range for 45 Minute | 145 ºC |
Connections
| Electrical Connection | M12 x 1 (4-pin) |
|---|---|
| Process Connections | Tank Mate Medium - 6 in. |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Weight | 3.3 lb |
|---|
Overview
20 Series - Intelligent Silo & Tank Level Sanitary Pressure Transmitters
- Easy programming and range adjustment without test pressure via on-board display
- 10:1 turn down
- Active temperature compensation
- 360º rotatable display
- Hart® protocol output available
