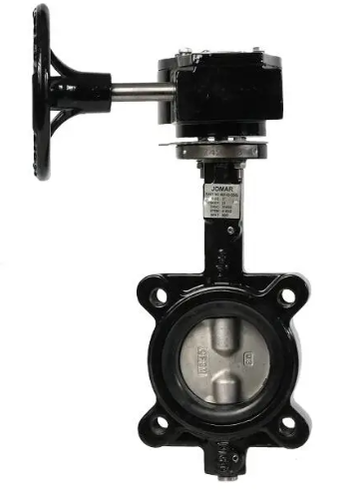

8" Jomar Valve BFV-Lug EPDM, Lug Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc, EPDM Seat, Gear Operator Butterfly Valve
Brand : Jomar Valve
MSRP: $1,312.11
Starting At:
$937.99
(You save
$374.12
)
- SKU:
- 600-08DSEG
- Size:
- 8"
- Size Dropdown:
- True
8" Jomar Valve BFV-Lug EPDM Butterfly Valve Technical Specs
Features
- Epoxy-Coated Finish
- NSF EPDM, PTFE, Buna-N, Viton, or Non-NSF EPDM Seats Available
- Square Stem for Direct Mount
- Ideal for Mounting Pneumatic/Electrical Actuators
- Easily Accepts Actuator with ISO 5211 Mounting Flange
- Seat-to-Flange Seal Eliminates Need for Flange Gaskets
- Designed for Commercial and Industrial Applications up to 225 PSI
- Bidirectional for Dead End Service
- NSF 61 & NSF 372 Certified: 2" -24" (NSF EPDM Seat Only)
- Meets API 609 & MSS SP-67
- Wetted Surfaces Contain Less than .25% Lead Content
Certifications/Approvals
- API 609
- MSS SP-67
- NSF 61 & NSF 372
Technical Specifications
Item
Butterfly Valve
Size
8"
Body Material
Ductile Iron - Epoxy Coated
Seat Material
EPDM
Body Type
Lug Style
Handle Type
Bare Stem
Disc Material
CF8M Stainless Steel
Temp. Range
-30°F to 250°F
Pressure Rating
Refer to spec sheet for inline and dead-end pressure ratings.
