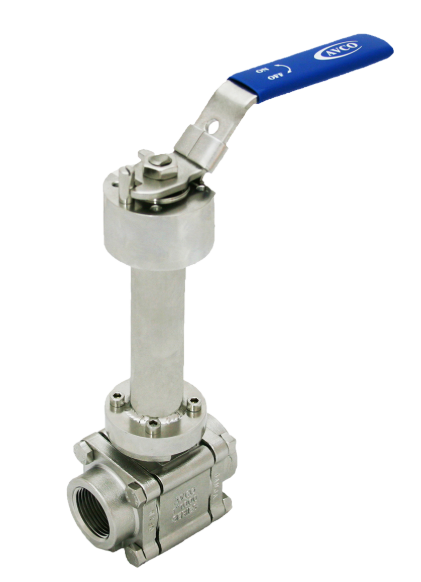

AVCO 1500 Series Cryogenic Ball Valve, 2-Way, 3 Piece, 316 Stainless Steel Body, Full Port, 150# Flange with Locking Handle
SKU:
AVCO-1533EG-150-LH
Starting at
$1,713.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size1/2" to 4"
Body Material316 Stainless Steel
End Connection150# Flange
PortFull Port
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | 2-Way, Cryogenic Ball Valve |
|---|---|
| Size | 1/2" to 4" |
| Brand | AVCO |
| Manufacturer Part # | AVCO-1533EG-150-LH |
Materials & Construction
| Body Material | 316 Stainless Steel |
|---|---|
| Seat Material | 25% Carbon Filled Teflon, Teflon, PCTFE |
| Ball & Stem Material | 316 Stainless Steel, Hastelloy C, Monel 400 |
| Stem Type | Blowout Proof |
Performance
| Flow Pattern | Uni Directional (Bi-Directional available upon request) |
|---|
Connections
| Port | Full Port |
|---|---|
| End Connection | 150# Flange |
Standards & Certifications
ASME B16.34MSS SP-134API 598API 607 4th EditionBS 6364
