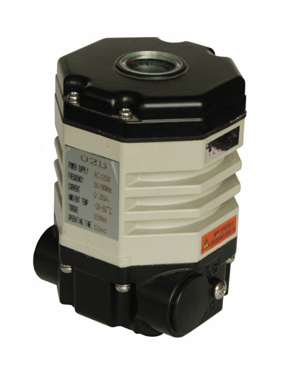

Jomar Valve AE-180-24VAC, 24VAC Electric Actuator, Double Acting, Nema 4X, Manual Override
Brand : Jomar Valve
MSRP: $1,085.00
$775.99
(You save
$309.01
)
- SKU:
- AE-180-24VAC
- Size Dropdown:
- True
Jomar Valve AE-180-24VAC Electric Actuator Technical Specs
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- Enclosure: IP67
- ISO 5211 mounting
- 90° operation
- Position indicator
- Manual override standard
- 24VAC / 1Ph / 60Hz
- Thermally protected induction motor
Technical Specifications
Item
Electric Actuator
Actuator Type
Double Acting
NEMA Rating
NEMA 4x
Duty Cycle
0.5
Torque (in lbs)
180
Voltage Option
24VAC
Motor Insulation Class
Class E
Temp. Range
-22°F to 140°F
Enclosure
IP67
