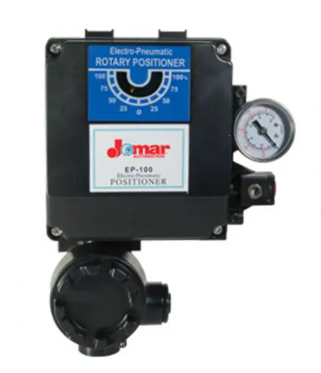

Jomar Valve AEP SERIES, Electro-Pneumatic Rotary Positioner

Jomar Valve AEP SERIES, Electro-Pneumatic Rotary Positioner Technical Specs

Features

• Aluminum Housing Construction
• Visual Position Indicator
• Enclosure: IP66 | Input: 4-20mA
• Supply: 20-100 PSI
• Impedance: 250 OHM± 15 OHM
• Linearity:±1% /±2% FS
• Operating Temperature: -4°F to 158°F
• Repeatability:±0.5% FS | Hysteresis:±1% FS
• Flow Capacity: 80 LPM
• Air Consumption: 3 LPM
• Weight: 6.5 LB
• Explosion Proof Approval: ExdII BT6
• Signal: 1/2" Conduit
• Connections: 1/4" Air / 1/8" Gauge
• For Use With 1/4-Turn Rotary Actuators
