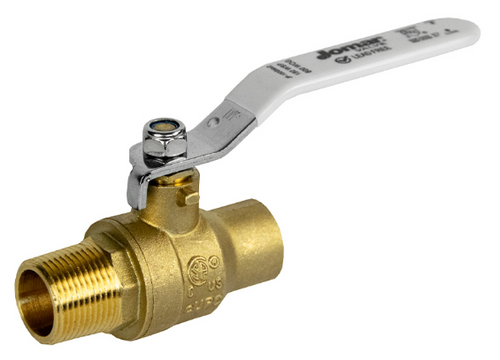

Jomar Valve JF-100GMXC Series, 2 Piece, Full Port, Dezincification Resistant Lead Free Brass, FNPT x Solder Connection, 600 WOG Ball Valve
Brand : Jomar Valve
MSRP: $24.88
Starting At:
$17.99
(You save
$6.89
)
- Size Dropdown:
- True
Jomar Valve JF-100GMXC Series 2 Piece Ball Valve Technical Specs
Features
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61 & NSF 372
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals
- IAPMO Certified
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- MSS SP-110
- ANSI B1.20.1
Technical Specifications
Item
Ball Valve
Size
1/2" to 3/4"
Port
Full Port
Design Type
2-Piece
End Connection
FNPT x Solder
Body Material
Lead Free Brass - C46400
Ball Material
304 Stainless Steel
Handle Type
Lever
Seat Material
PTFE
Stem Material
304 Stainless Steel
Stem Design
Blowout Proof
Max Pressure
600 psi WOG, 150 psi steam
Max Temp
500°F
