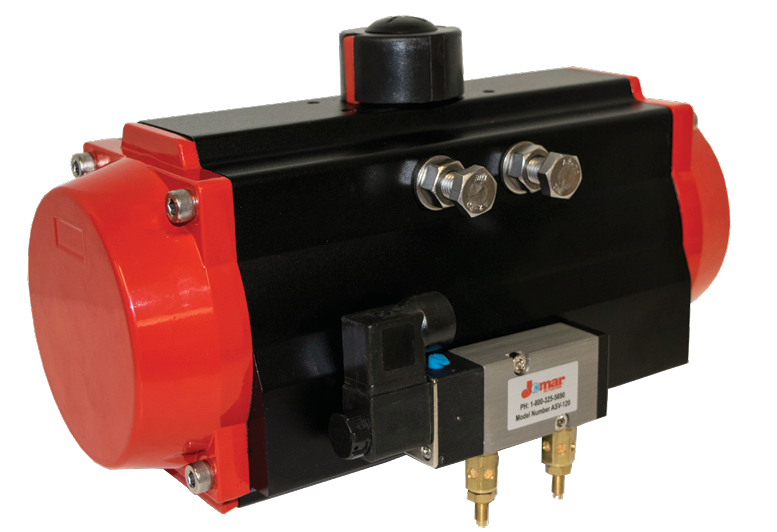

Jomar Valve JV-50-SR, Spring Return Pneumatic Actuator
Brand : Jomar Valve
MSRP: $392.45
Starting At:
$280.99
(You save
$111.46
)
- SKU:
- JV-50-SR
- Size Dropdown:
- True
Jomar Valve JV-50-SR, Spring Return Pneumatic Actuator Technical Specs
Description
Jomar JV Series rotary pneumatic actuators are designed for use with quarter-turn ball, butterfly and plug valves as well as damper applications. The JV Series actuator is designed for high-cycle applications and can be utilized in hazardous and corrosive environments.Features
- Hard anodized aluminum body with both internal and external corrosion protection
- Manufactured to fully conform to ISO5211 and DIN3337
- Namur interface mounting of solenoid valves, limit switches and positioners
- Precision honed cylinder surfaces for longer life and low coefficient of friction
- Dual rack and pinion design with multiple bearings and guides
- Blow-out proof output shaft
- Modular type, epoxy coated spring design offers a wide torque range, corrosion resistance and an extended life cycle
- O-ring sealed to prevent outside contamination
- Stainless steel fasteners
- Travel stops are standard on all models
- Manufactured with silicone-free lubricants
- Torque ranges - Double Acting: up to 388,762 in-lb; Spring Return: up to 257,836 in-lb
Technical Specifications
Item
Pneumatic Actuator
Actuator Type
Spring Return
