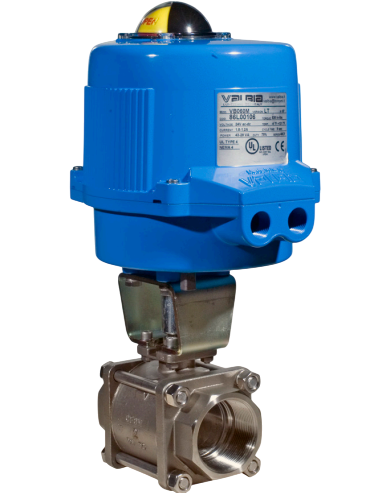

4" Bonomi M8E710190V**-0* 30/ 60/ 90° V-Port Ball Valve, 2-Way, Stainless Steel , Full Port, NPT Threaded, with Metal Electric Actuator with Positioner OR Positioner with Battery Backup - For Steam
Brand : Bonomi Valves
MSRP: $4,292.00
Starting At:
$3,310.99
(You save
$981.01
)
- Size:
- 4"
- Size Dropdown:
- True
4" Bonomi M8E710190V**-0* 30/ 60/ 90° V-Port Ball Valve Technical Specs
Item
2-Way Electrically Actuated Ball Valve (V-Port)
Size
4"
Body Material
CF8M Stainless Steel
Ball Options
30° - 60° , 60° , 90°
Port
Full Port
Connection Type
NPT Threaded
Max. Pressure
1000 psi; 150 psi steam
Seat Material
PTFE
Ball Material
AISI 304-CF8M
Max. Process Temp.
-4°F to 406°F
Stem Type
Blowout Proof, Antistatic Device
Stem Material
304 Stainless Steel
NEMA Rating
NEMA 4
Available Actuator Package
24V AC/DC
100-240V AC
Duty Cycle
75% Duty Cycle
Approvals
See Specification Sheet
