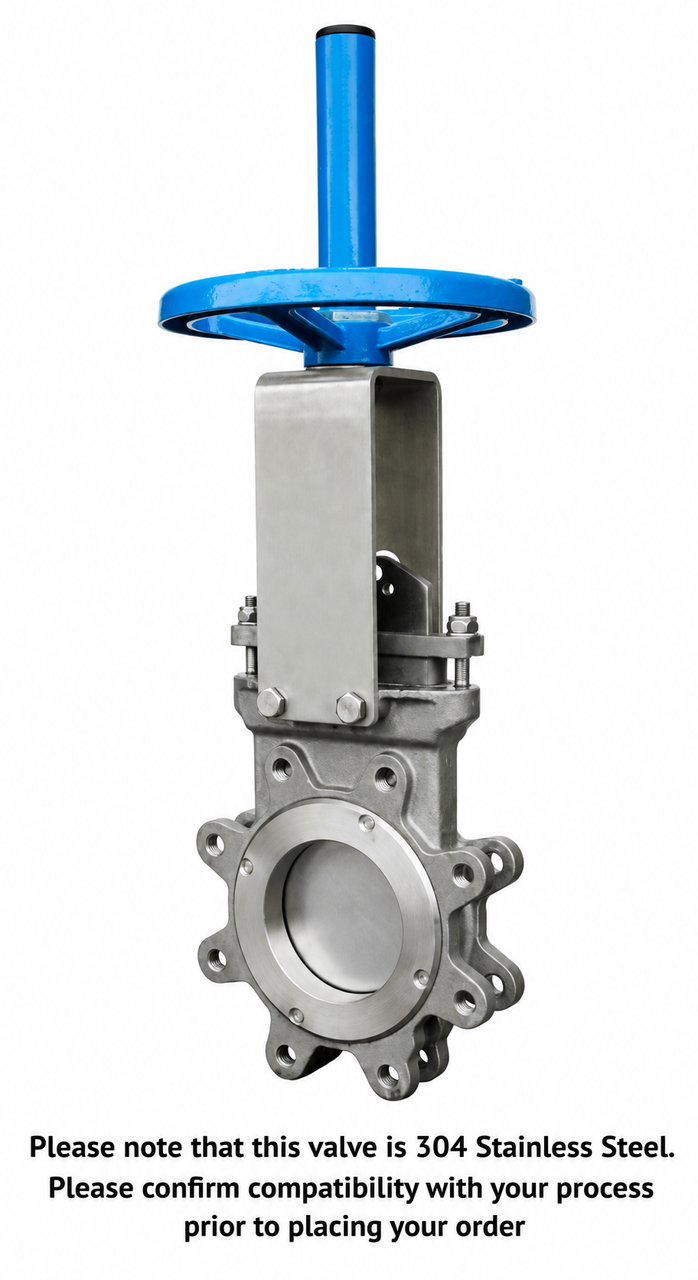

Orbinox Series 22 (Bi-Directional) 304SS Knife Gate Valve, Resilient seated (EPDM), Rising Stem, Hand Wheel
SKU:
OBNX-22-3434RI-SSY
Made in India
Starting at
$753.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Size2" to 36"
Working Pressure(2" to 24") 150 psi/10 bar, (30" to 36") 100 psi/7 bar
Body Material304 Stainless Steel
Flange ConnectionANSI B16.5 (class 150), others available upon request
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Valve Type | 2-Way Heavy Duty Knife Gate Valve |
|---|---|
| Size | 2" to 36" |
| Brand | Orbinox |
| Manufacturer Part # | OBNX-22-3434RI-SSY |
| Country of Origin | Made in India |
Materials & Construction
| Seat | EPDM |
|---|---|
| Body Material | 304 Stainless Steel |
| Body Style | Lug Type |
Performance
| Working Pressure | (2" to 24") 150 psi/10 bar, (30" to 36") 100 psi/7 bar |
|---|
Connections
| Flange Connection | ANSI B16.5 (class 150), others available upon request |
|---|
