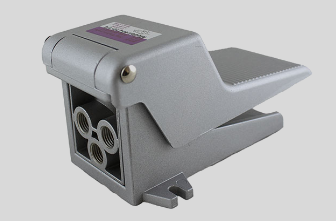

STC 4F210-1/4 Foot Operated Air Valve- 1/4" NPT, 4 Way 5 Port, 2 Position - Foot Valve Momentary
Brand : STC Valve
MSRP: $54.77
Starting At:
$46.99
(You save
$7.78
)
- Minimum Purchase:
- 1 unit
- Size:
- 1/4"
- Size Dropdown:
- True
STC 4F210-1/4 Technical Specifications
Operation
4-Way, 5-Port, 2-Position Momentary (Spring-Return) Foot-Operated Pedal
Type
Foot Operated Directional Air Valve
Port Size
1/4" NPT
Operating Pressure
0 to 116 PSI
Operating Temperature
14 to 140°F (-10 to 60°C)
Action
Direct Acting
Working Medium
40 Micron Filtered Air or Inert Gas
Body Material
Anodized Aluminum
Seal Material
NBR (Buna N)
Flow Coefficient
1.68
