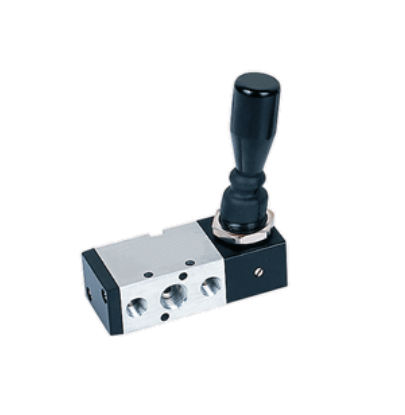

STC 4H230E-S Manual Air Valve- 1/4" NPT, 4 Way, 5 Port, 3 Position Valves - Non Detented Exhaust Center Lever Air Valve
Brand : STC Valve
MSRP: $105.27
Starting At:
$90.99
(You save
$14.28
)
- SKU:
- 4H230E-S
- Minimum Purchase:
- 1 unit
- Size:
- 1/4"
- Size Dropdown:
- True
STC 4H230E-S Technical Specifications
Operation
4-Way, 5-Port, 3-Position Lever, Exhaust Center - Non Detented (Spring Return)
Type
Hand Operated Directional Air Valve
Port Size
1/4" NPT (1/8" NPT Exhaust Ports)
Operating Pressure
0 to 116 PSI
Operating Temperature
14 to 140°F (-10 to 60°C)
Action
Direct Acting
Working Medium
40 Micron Filtered Air or Inert Gas
Body Material
Anodized Aluminum
Seal Material
NBR (Buna N)
