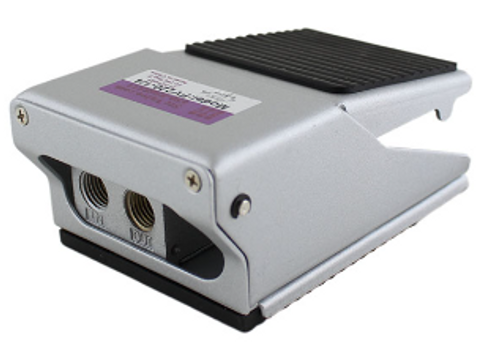

STC FV220-1/4 Foot Operated Air Valve- 1/4" NPT, 2 Way 2 Port, 2 Position - Foot Valve Momentary

Brand :

MSRP: $45.30
Starting At: $38.99
(You save $6.31 )
Minimum Purchase:
1 unit
Size:
1/4"
Size Dropdown:
True

STC FV220-1/4 Technical Specifications

Operation
2-Way, 2-Port, 2-Position Momentary (Spring-Return) Foot-Operated Pedal
Type
Foot Operated Directional Air Valve
Port Size
1/4" NPT
Operating Pressure
0 to 116 PSI
Operating Temperature
14 to 140°F (-10 to 60°C)
Action
Direct Acting
Working Medium
40 Micron Filtered Air or Inert Gas
Body Material
Anodized Aluminum
Seal Material
NBR (Buna N)
Flow Coefficient
0.89
