Save 14%

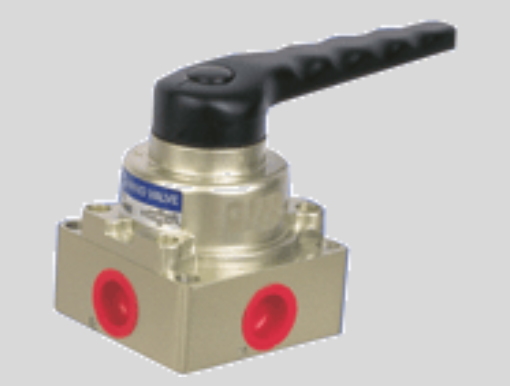

STC HV 420 Manual Air Valve- 1/4" NPT, 4 Way 4 Port, 3 Position - Hand Valve Closed Center
SKU:
HV 400/420
$44.99
Price on request
Was: $52.42
You Save $7.43
Available to Order
Available Models
410 Manual
420 Manual
Port Size1/4" NPT
Operating Pressure0 to 116 PSI
Body MaterialAnodized Aluminum
Operating Temperature14 to 140°F (-10 to 60°C)
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Operation | 4-Way, 4-Port, 3-Position Detented Rotary Lever, Closed Center |
|---|---|
| Type | Hand Operated Directional Air Valve |
| Action | Direct Acting |
| Working Medium | 40 Micron Filtered Air or Inert Gas |
| Brand | STC Valve |
| Manufacturer Part # | HV 400/420 |
| Size | 1/4" |
Materials & Construction
| Body Material | Anodized Aluminum |
|---|---|
| Seal Material | NBR (Buna N) |
Performance
| Operating Pressure | 0 to 116 PSI |
|---|---|
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Flow Coefficient | 1.68 |
Connections
| Port Size | 1/4" NPT |
|---|
