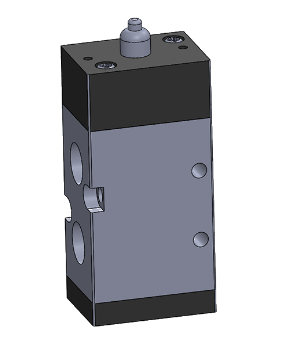

STC MSV-TSV 86522 Series Manual Air Valve- 1/4" NPT, 3 Way, 3 Port, 2 Position Valves
SKU:
STC MSV-TSV 86522 Series Manual Air Valve- 1/4" NP
Starting at
$45.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Port Size1/4" NPT (1/8" NPT Exhaust Ports)
Operating Pressure0 to 116 PSI
Body MaterialAnodized Aluminum
Operating Temperature14 to 140°F (-10 to 60°C)
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Operation | 4-Way, 5-Port, 2-Position |
|---|---|
| Type | Hand Operated Directional Air Valve |
| Action | Direct Acting |
| Working Medium | 40 Micron Filtered Air or Inert Gas |
| Brand | STC Valve |
| Manufacturer Part # | STC MSV-TSV 86522 Series Manual Air Valve- 1/4" NP |
Materials & Construction
| Body Material | Anodized Aluminum |
|---|---|
| Seal Material | NBR (Buna N) |
Performance
| Operating Pressure | 0 to 116 PSI |
|---|---|
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
Connections
| Port Size | 1/4" NPT (1/8" NPT Exhaust Ports) |
|---|
