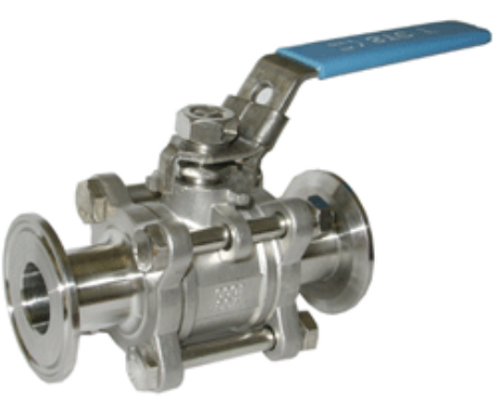

STC V3C-2 1/2" FNPT Sanitary Stainless Steel Ball Valve- Full Port, Clamp End, Padlocking Device and Actuator Mounting Bracket

Brand :

MSRP: $479.48
Starting At: $410.99
(You save $68.49 )
Minimum Purchase:
1 unit
Size:
2 1/2"
Size Dropdown:
True
STC V3C-2 1/2" FNPT Sanitary Stainless Steel Ball Valve- Full Port, Clamp End, Padlocking Device and Actuator Mounting Bracket
View Details

STC V3C-2 1/2" FNPT Technical Specifications

Sanitary Stainless Steel Ball Valves are made with a precision machined Teflon seat for use in sanitary applications. They utilize a three piece design and have four bolts that permit quick and easy access to service the valve without disrupting the pipe line connections.

Valve Type
Sanitary Stainless Steel Ball Valve
Maximum Operating Pressure
1000PSI @ 100°F WOG
Operating Temperature Range
-60 to 450°F
End Connections
Clamp End
Mounting Options
Padlocking device and actuator mounting bracket
Design Standard ASME
B16.34, GB/T12237
Test & Inspection
API1598, JB/T9092

Size:
2 1/2"
Size Dropdown:
True
